  • Elkay LBWD06BKK ezH2O Liv Filtered RESIDENTIAL Bottle Filling Station (Midnight Black, Refrigerated)

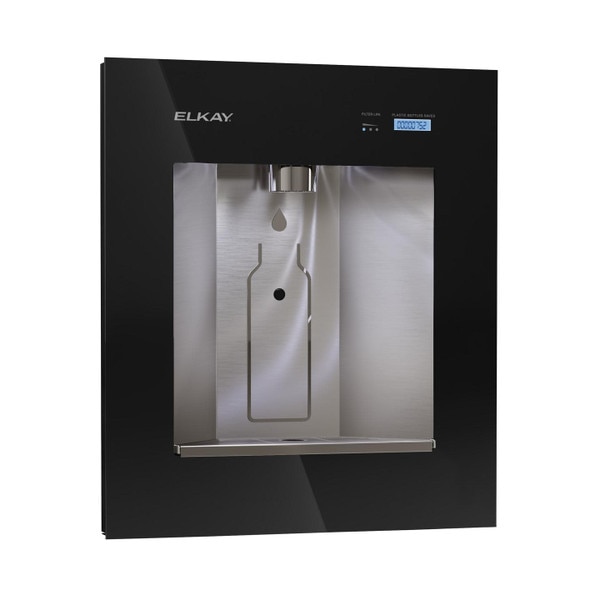

Elkay LBWD06BKK ezH2O Liv Filtered RESIDENTIAL Bottle Filling Station (Midnight Black, Refrigerated)

(0) No Reviews yet
$1,959.99
SKU: LBWD06BKK

Distinguishing Features:   Residential Version  •  Midnight Black  •  Refrigerated

Our convenient, built-in filtered water dispenser is made for all the living that happens in your home. Imagine a hands-free water source in your mudroom, recreation room or even master suite, for dispensing cleaner, healthier water.

It’s ideal for busy families and people who love entertaining, with endless uses such as filling single-brew coffee makers, watering cans for plants and pet bowls.

Say goodbye to trips to the store for disposable bottled water that takes up precious storage space.

  • BUILT-IN DESIGN: Install a filtered water dispenser in convenient areas of the home, inside and outside the kitchen; new construction or remodels.
  • EASY INSTALLATION: Fits within the width and depth of two wall studs near water and electric; includes drip tray with optional drain connection.
  • FILTERED WATER: NSF-certified filter reduces lead and other harmful contaminants, for added assurance of healthier and great-tasting water.
  • FILTER STATUS LIGHTS: Colorful lights indicate when quick and easy filter changes are needed.
  • BOTTLES SAVED: Backlit LED Green Ticker counts the number of disposable, single-use plastic bottles served without the plastic bottle waste.
  • SAFETY LOCK: Optional setting prevents unsupervised use; ideal for families with small children or pets.

This model comes with a Elkay ERF750 filter which is good for 750 gallons before it will need to be replaced.



Certifications:

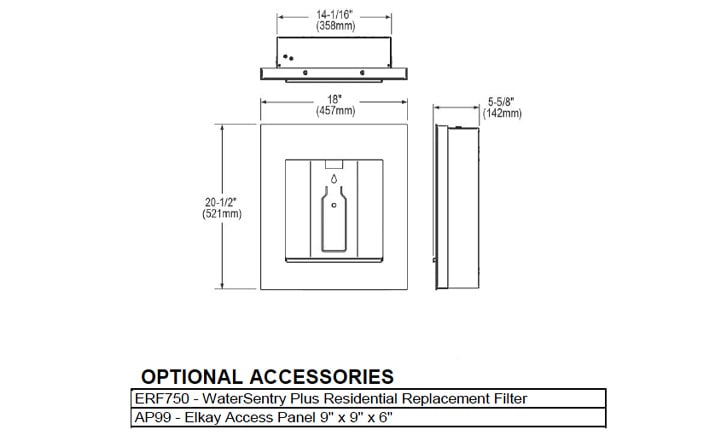

Measurement Diagram:



Installation Location: Indoor
Number of Stations: One (1) Bottle Filling Station
Mount: Wall / Recessed
Operation: Automatic (Infra-red sensor)
Basin(s): Stainless Steel Alcove
Cabinet(s): Black Glass Fascia
Bubbler(s): None
Cooled: Yes
Filtered: Yes | Replacement filter ERF750
Power: 110-120V (Standard)
Status Display: Filter Status Indicator (Green/Yellow/Red)
Green Ticker Display (Counts bottles saved from waste)
Overall Dimensions: 18" Wide x 20-1/2" Tall x 5-1/8" Deep (Projects 1-5/8" out from wall)
Rough-in: Main Unit: 19-7/8" Tall x 14-1/2" Wide x 3-7/8" Deep
Filter Drawer: 6-5/8" Tall x 14-1/2" Wide x 6-5/8" Tall x 2-3/8" Deep
Shipping Dimensions: Box 1: 18-3/4" Length x 8-3/4" Width x 17-3/4" Height
Box 2: 47-3/4" Length x 19" Width x 17-3/4" Height
Shipping Weight: 78 lbs.
UPC / GTIN: 94902118369
Manufacturer Model No.: LBWD06BKK
Included: Water Dispenser (LBWD06B)
Chiller (ERS11Y)
Warranty: Refrigeration: 5 Yr. Manufacturer's Limited
All Other.: 1 Yr. Manufacturer's Limited

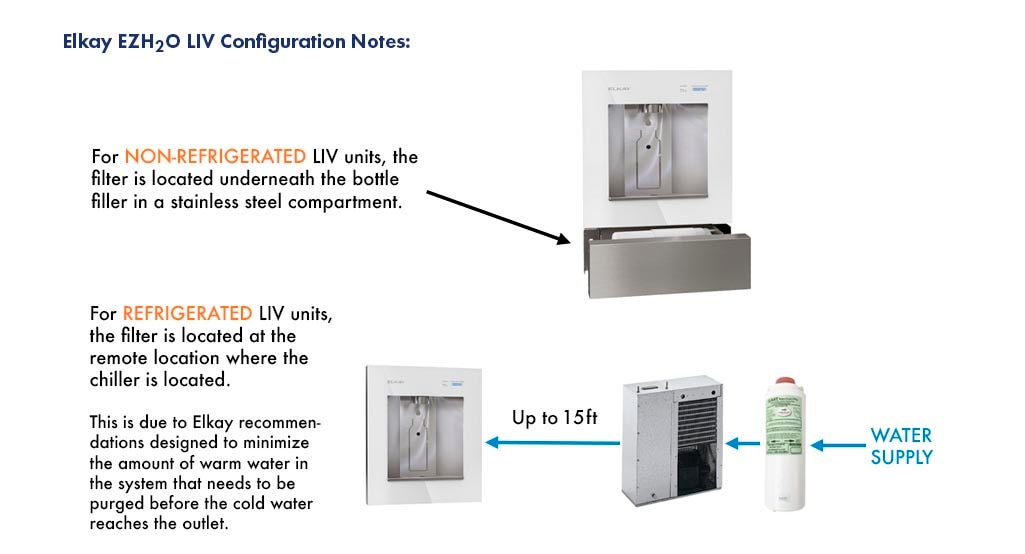

Additional Comments: Refrigeration unit is installed remotely (within 15ft). Space required is approximately 22" Height x 15" Length x 12" Width

Warnings:

California Residents: See Prop 65 Information & Warnings for information on Elkay and Halsey Taylor products.

Architectural Specifications:

Elkay ezH2O® Liv™ Built-in Filtered Refrigerated Water Dispenser, Remote Chiller. Chilling Capacity of 1.5 GPH (gallons per hour) of 50° F drinking water, based on 80° F inlet water and 90° F ambient, per ASHRAE 18 testing. Features shall include Chilled Water, Hands Free, Visual Filter Monitor, Automatic Filter Status Reset, Filtered, Green Ticker™, Laminar Flow. Electronic Bottle Filler Sensor activation. Product shall be Built-in, for Indoor applications, serving 1 station(s). Unit shall be certified to UL 399 and CAN/CSA C22.2 No. 120. Unit shall be lead-free design which is certified to NSF/ANSI 61 & 372 (lead free) and meets Federal and State low-lead requirements.




Elkay ezH2O Liv Offers Water Where You Want It



Elkays ezH2O Liv Brings Healthier Hydration Home



The EWF750 Water Sentry Filter



Installation overview for Elkay ezH2O LIV Built-in Water Dispensers



How to Replace the Water Filter on an Elkay ezH2O Liv Built-in Filtered Water Dispenser



Care and cleaning guide for ezH2O LIV Bottle Filling Stations
