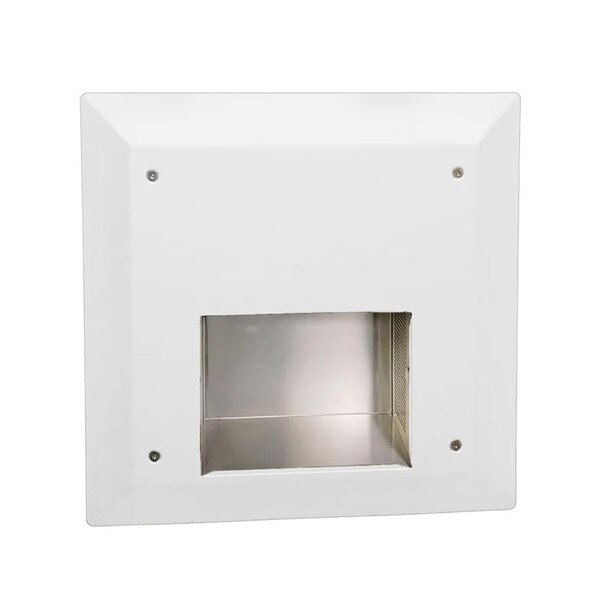

Pinnacle PDC-R10-2W Automatic ADA Hand Dryer - White - Recessed Mount
 | NEW! Now offered in stainless steel powder coat white finish with 2-week lead time. |
The Pinnacle PDC-R10 is a touchless, recessed mount hand dryer. It is automatic, virtually vandal resistant, dries hands in 12-15 seconds, and comes with a 10-year warranty. This model extends 7/8" from the wall when installed. All new solid-state circuitry has completely eliminated all mechanical parts. Unit is activated by an infrared sensor when hands are placed in drying chamber. Dryer operates only when in use.
Stainless Steel White Powder Coated Cover and Drying Chamber
Vandal Resistant
Low Power Consumption
ADA Compliant
| Activation: | Automatic (infra-red sensor) Touch-Free |
| Mount: | Wall Mount / Recessed Mount |
| Cover: | 18 Gauge Stainless Steel, Powder Coated White |
| Cycle Time: | Not applicable Dryer stops when hands are removed. |
| Nozzle: | Perforated stainless steel plate |
| Power: | 110-120V, 60Hz, 1250 Watts (11A) |
| Motor: | Heavy Duty, 7500 RPM, Double-Insulated, CSA & UL Component Approved |
| Fan: | Cylindrical, metal scroll wheel |
| Airspeed: | 150 CFM |
| Heating Element: | 1000W Heavy-Duty, Thermally protected to cut out at 90° C. |
| Filter: | False |
| IP Rating: | Not published |
| Product Dimensions: | 18" Wide x 18-1/2" Tall x 5-5/8" Deep |
| Shipping Dimensions: | Approx. 21" Length x 21" Width x 10" Height |
| Shipping Weight: | 21.5 lbs. |
| UPC / GTIN: | Not published |
| Manufacturer Model No.: | PDC-R10-2W |
| Country of Manufacture: | USA |
| Warranty: | 10 Year warranty |
