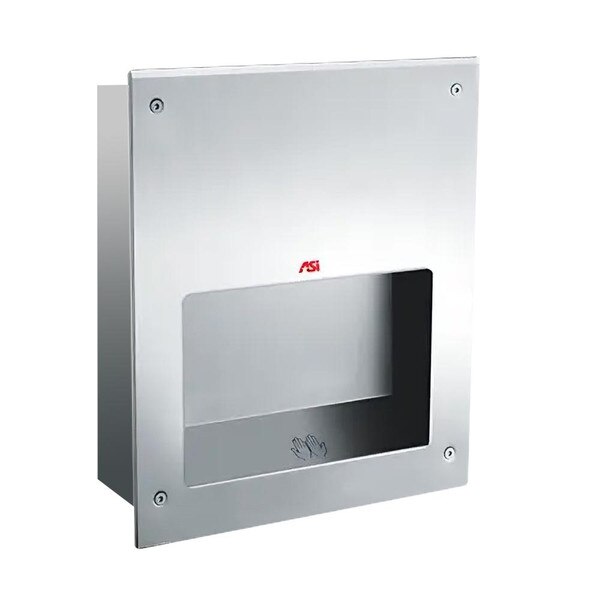

ASI 0198-MH SAFE-Dri Anti-Ligature ADA Automatic High-Speed Hand Dryer, Recessed - 110/120V
Anti-ligature dryer designed for Behavioral Health environments—angled top, welded corners and single tube exhaust prevent looping, tying off, wedging and prying. Tamper-resistant 18 gauge stainless steel cover, and flush pin-hex security screws.
- Quick drying times of 15 seconds or less; 201 mph max airspeed.
- Anti-Ligature design
- 18 gauge type 304 Stainless Steel - Satin Finish
- ADA compliant
Certifications:

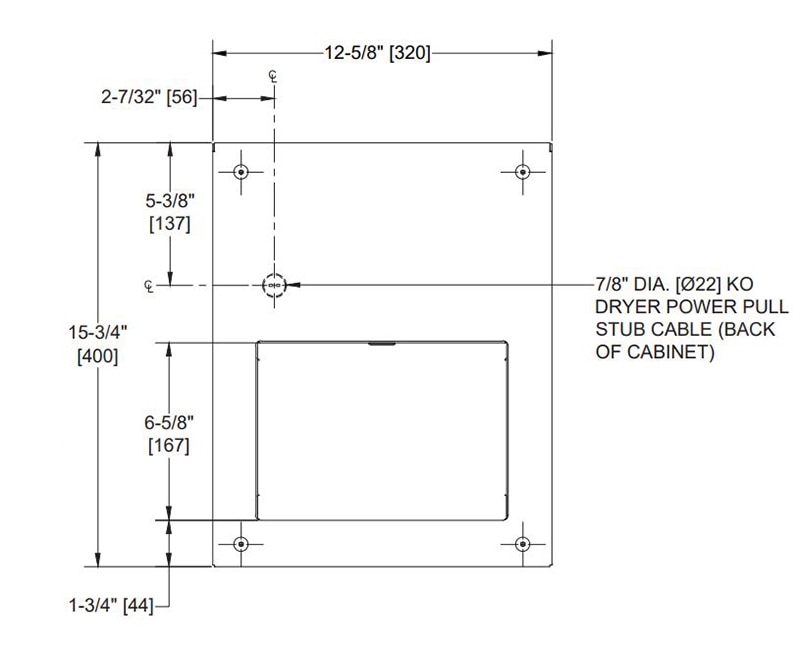

Measurement Diagram:
| Activation: | Automatic (infra-red) hands-free (self calibrating) |
| Mount: | Wall Mount |
| Cover: | 18 gauge type 304 stainless steel |
| Cycle Time: | Not applicable Dryer stops when hands are removed. |
| Power: | 115-120VAC, 50/60 Hz. 0.84-1.0 kW |
| Amps: | 0.4 Amps @ 120 VAC |
| Airspeed: | 201 mph (230 ft/s) [90 m/s {324 km/h}] |
| Decibel Level: | 66 dB-A @ 2M |
| Filter: | None |
| Manufacturer Model No.: | 10-0198-MH |
| Country of Manufacture: | Taiwan |
| Warranty: | 5 Year Manufacturer Limited Warranty |
| Additional Comments: | Taiwan |
