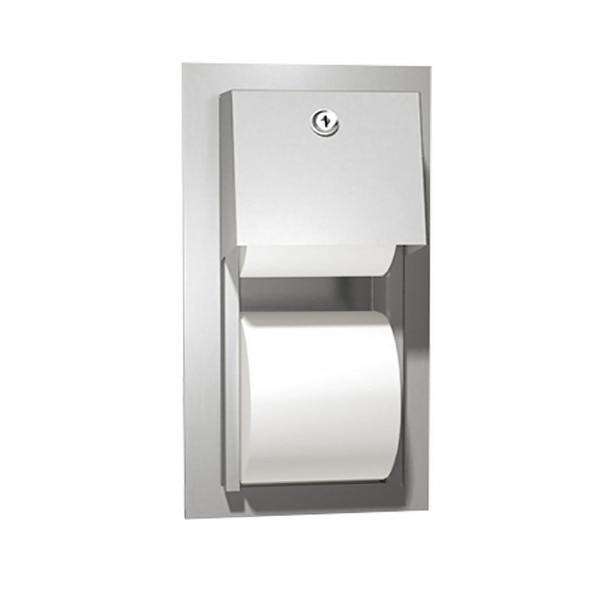

ASI 10-0031 Toilet Tissue Dispenser, Twin Hide-A-Roll, Recessed Mount
Holds two rolls up to 5-1/4″ (135 mm) diameter (1800 sheets). Top roll automatically drops in place when bottom roll is used up.
Type 304 stainless steel cabinet and mechanism. Theft resistant spindles. Provided with flange for recess mounting.
| Type: | Standard Roll |
| Mount: | Wall / Recessed |
| Primary Material: | Stainless Steel (Brushed Finish) |
| Locks: | Yes, one tumbler |
| Overall Dimensions: | 8" Wide x 14" Tall x 6-1/2" Deep (Projects 3" out from wall) |
| Rough-In: | 6-1/4" Wide x 12-1/4" Tall x 3-3/8" Deep |
| Shipping Weight: | 7.7 lbs. |
| Warranty: | 1 Year Limited |
Architectural Specifications:
Semi-Recessed Mounted Twin Hide-A-Roll Toilet Paper Dispenser shall hold and dispense two (2) standard or two (2) 5-1/4" Dia [Ø133] 1800 sheet tissue rolls and have door, door frame, and dispensing mechanism guide tracks of 18 gage [1,3] type 304 stainless steel alloy 18-8. Cabinet body shall be 22 gage [0,8] same grade. All exposed surfaces shall be satin finish and be protected during shipment with PVC film easily removable after installation. Internal mechanism levers shall be molded high-impact resistant plastic for smooth operation. Structural assembly of body and door components shall be of welded construction. Door hinge shall be heavyduty stainless steel 3/16" Dia [Ø4,8] rivets. Door shall be held closed with a tumbler lock keyed alike to other ASI washroom equipment. Cabinet shall include two (2) theft and vandal resistant rollers (p/n R-004) that are molded high-impact resistant plastic with integral molded-in plated steel endpins.
