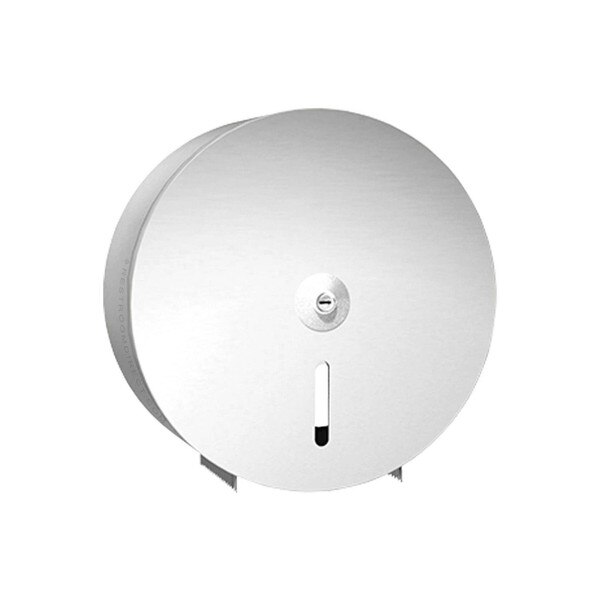

ASI 10-0042 Toilet Tissue Dispenser, Jumbo Roll, Single Roll
Holds one roll up to 10″ (254 mm) diameter of 1-5⁄8″ or 2-1⁄4″ (41 or 57 mm) diameter core. Outer cabinet is type 304 stainless steel with a satin finish. Unit has viewing slot and tumbler lock.
| Type: | Jumbo Roll |
| Mount: | Wall / Surface |
| Primary Material: | Stainless Steel (Brushed Finish) |
| Capacity: | One jumbo rolls (Up to 10" Dia. With 1-5/8" or 2-1/4" Core) |
| Locks: | Yes, one tumbler |
| Net Weight: | 3.3 lbs. |
| Shipping Weight: | 4.1 lbs. |
| Warranty: | 1 Year Limited |
Architectural Specifications:
Surface Mounted Jumbo-Roll Toilet Paper Dispenser shall hold one (1) roll up to 10" Dia [Ø254] with 1-5/8" Dia [Ø41,3] core or 2-1/4" Dia [Ø57] core. Cover shall be 22 gage type 304 Stainless Steel alloy 18-8 with a satin finish (or Powder Coated (PC) Matte Black finish if suffix -41 is added to Model №). Rear of cabinet shall have five (5) mounting holes to suit № 8 or № 10 flat head screws. Cover shall be of one piece construction hung on stainless steel pin hinges and shall be held closed by a tumbler lock keyed to other ASI washroom equipment with key provided. A viewing slot with clear plastic window shall be provided. Unit shall accommodate smaller core size roll by removing the rubber core adapter O-rings. Opening on bottom of cabinet shall have stainless steel teeth for toilet tissue tearing on both sides. Cover at top shall have shoulder pin to interlock back plate when closed.
