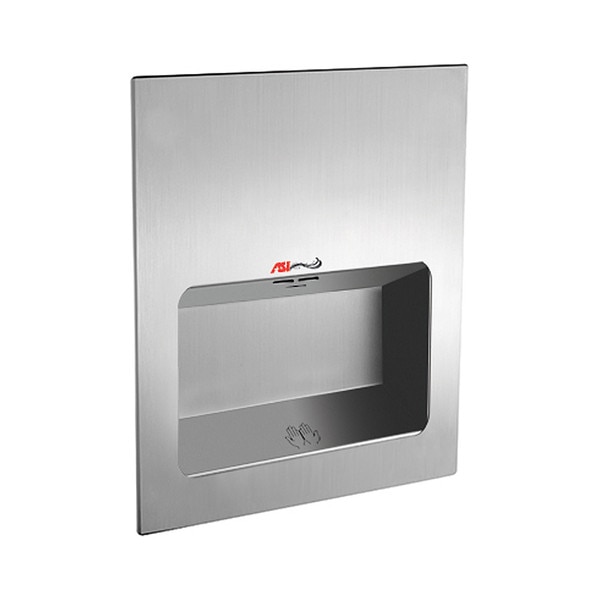

ASI 10-0135-1 TURBO-Tuff Fully Recessed High Speed Hand Dryer, 110-120V, 50/60Hz, Stainless Steel
Heavy duty stainless steel face plate with satin finish. 5 year warranty. Automatic resetting thermal protection on motor and heating element. Flush security hex access screws and heavy duty slotted air intake vents prevent unauthorized tampering.
- Fully recessed for ADA compliance
- Hands-in design minimizes dripping
- Heavy duty, stainless steel, vandal resistant construction
- Self calibrating IR sensor for reliable automatic activation
- 5 Year manufacturer's limited warranty
Certifications:

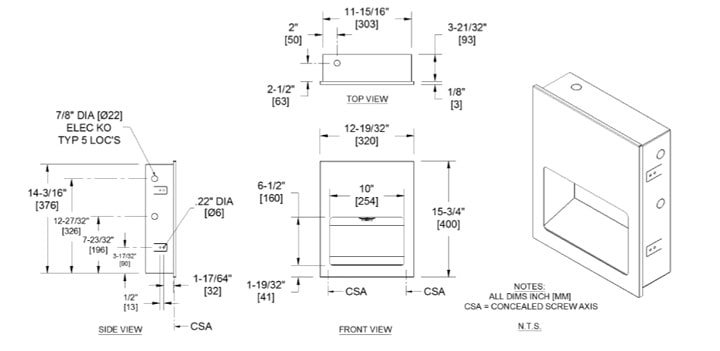

Measurement Diagram:
Alternatives:
Need a higher speed dryer that is surface mount and GreenSpec listed? We recommend the ASI 0197 TURBO-dri high speed hand dryer.
| Activation: | Automatic (infra-red) hands-free (self calibrating) |
| Mount: | Wall Mount / Recessed Mount |
| Cover: | 18 gauge type 304 stainless steel |
| Cycle Time: | Not applicable Dryer stops when hands are removed. |
| Nozzle: | Concentrated dual port nozzle |
| Power: | 1000 Watts, 110-120V (8.7A), 50/60Hz |
| Motor: | Brush type, dual ball bearings |
| Fan: | Multi-Inlet Centrifugal |
| Airspeed: | 42-60 CFM, 150-230 ft/s |
| Heating Element: | 325-500 Watt with auto reset circuit breaker |
| Filter: | None |
| IP Rating: | Not published |
| Product Dimensions: | 12-19/32" Wide x 15-3/4" High x 4-1/16” Deep |
| Shipping Dimensions: | 17" Width x 15" Length x 5-3/4" Height |
| Shipping Weight: | 19 lbs. |
| UPC / GTIN: | Not Published |
| Manufacturer Model No.: | 10-0135-1 |
| Country of Manufacture: | Taiwan |
| Warranty: | 5 Year Manufacturer Limited Warranty |
| Additional Comments: | Taiwan |
Architectural Specifications:
Turbo-Tuff™ Recess Mounted Sensor Hand Dryer shall operate automatically from IR sensor that shall activate dryer when hands are placed in sensor zone. Cover and hand drying chamber shall be 18 gauge type 304 stainless steel alloy 18-8. All exposed surfaces shall have satin finish and shall be protected during shipment by PVC film easily removable after installation. Cabinet shall be 20 gauge galvannealed steel with a 1/2" [13] wide perimeter trim to lay flush against wall and shall have concealed and captive hex screws to close cover. Motor and heating element shall have internal resetting automatic thermal protection. Fixed directional air shall be vanes heavy duty, rust proof and tamper resistant. Air intake slots shall not allow access to internal parts. Circuitry shall have self-adjusting time-out and fail-safe off protection controlled by a microprocessor that shall detect and reject false signals and shall automatically self-calibrate to provide uniform sensitivity over its entire life span. Entire unit shall be internally electrically grounded. Dryer unit shall have approval and be listed under the re-examination services of Underwriters Laboratories, Inc. Unit shall be warranted against defects in materials or workmanship for three (3) years. Owner’s Manual (OM) and Mounting Template Installation Guide (MT & IG) are supplied with unit.
