ASI 10-0185-93 Profile, Brushed SS Cover, Surface Mount Automatic Hand Dryer, Universal Voltage
This durable slim profile hand dryer is ADA compliant (when surface mounted) and has a sleek modern cover design.
Durable construction (16 gauge steel).
Quiet operation (63dB)
10 Year manufacturer's limited warranty
ADA Compliant without need for recessing (surface mount)
Universal voltage support (works with 110-120V, 208V or 220-240V)
Certifications:

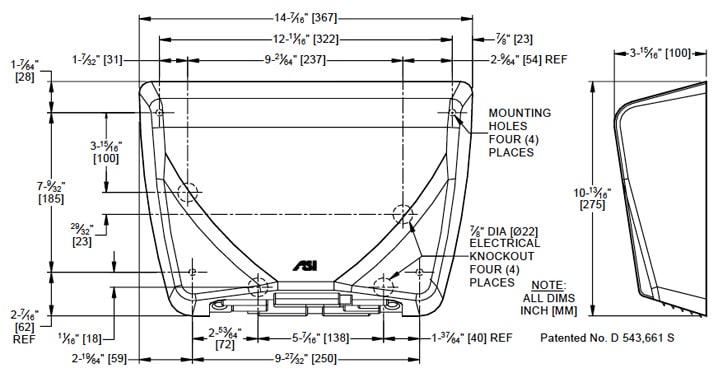

Measurement Diagram:
Alternatives:
Looking for a similar format dryer from the renowned Dyson Airblade family? See the compact but powerful Dyson "V" (HU02) hand dryer.
| Activation: | Automatic (infra-red) hands-free (self calibrating) |
| Mount: | Wall Mount / Surface Mount |
| Cover: | 16 Gauge drawn steel |
| Cycle Time: | Not applicable Dryer stops when hands are removed. |
| Nozzle: | Fixed directional outlet grill |
| Power: | 2022 Watts, 110-120V (17.6A), 50/60Hz |
| Motor: | Brush type, dual ball bearings |
| Fan: | Single Inlet Centrifugal |
| Airspeed: | 186 CFM |
| Heating Element: | 1857W Nichrome wire with auto reset circuit breaker |
| Filter: | None |
| IP Rating: | Not published |
| Product Dimensions: | 14-1/2" Wide x 10-3/4" Tall x 4" Deep |
| Shipping Dimensions: | 16-3/4" Length x 12-3/4" Width x 8" Height |
| Shipping Weight: | 12.7 lbs. |
| UPC / GTIN: | Not Published |
| Manufacturer Model No.: | 10-0185-93 |
| Country of Manufacture: | Taiwan |
| Warranty: | 5 Year Manufacturer Limited Warranty |
Architectural Specifications:
Surface mount unit on wall with four (4) 1/4" screws, washers and bushings (supplied) through rubber grommets (supplied) in a corrosion protected formed heavy steel back plate into suitable prepared mountings (by others) or other suitable mounting hardware (by others) to suit wall conditions. For masonry walls use expansion bolts or anchors for 1/4" (6) screws. Electric service of 100-240VAC 20A 50/60 Hz (provided by others) is brought to RWO at location for dryer indicated on diagram above and is hooked up (by others) in accordance with schematic and Owner’s Manual provided with unit. Electrical service is supplied and connected (by others) prior to installing cover. Cover is secured to back plate with two (2) hex socket security screws (supplied). For compliance with ICC/ANSI A-117.1-2003 and ADA Accessibility Guidelines install unit with bottom of sensor lens 48" [1219] max AFF (Above Finished Floor) if clear floor forward reach or if clear floor side reach access is provided or 46" [1168] max AFF if side reach access over an obstruction (e.g. vanity) with reach depth greater than 10" [254] and less than 25" [635] is only provided or 44" [1118] max AFF if forward reach over an obstruction (e.g. commode) with reach depth greater than 20" [508] and less than 25" [635] is only provided. For general utility install unit so that sensor lens is 44" to 50" [1118 to 1270] AFF. For installation of two or more dryers, dryers should be no closer than 24" [610] on center. See OM and Template supplied with unit.
