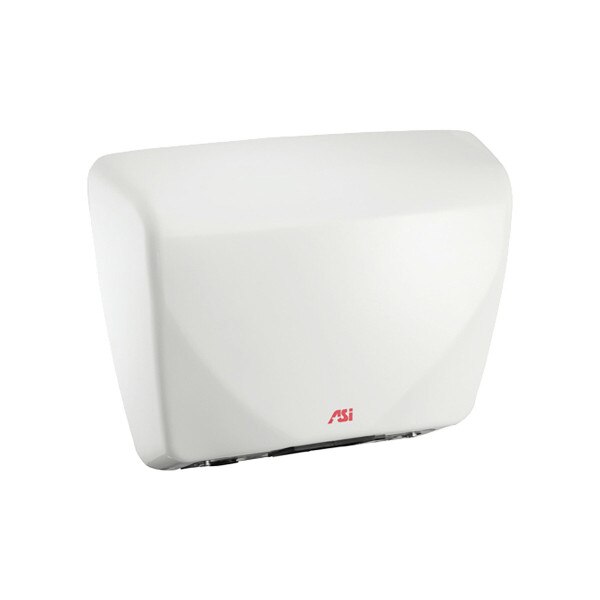

ASI 10-0185 Profile, Steel Cover, Surface Mount Hand Dryer, White, Automatic, Universal Voltage
This durable slim profile hand dryer is ADA compliant (when surface mounted) and has a sleek modern cover design.
- Durable construction (16 gauge steel).
- Quiet operation (63dB)
- 10 Year manufacturer's limited warranty
- ADA Compliant without need for recessing (surface mount)
- Universal voltage support (works with 110-120V, 208V or 220-240V)
Certifications:

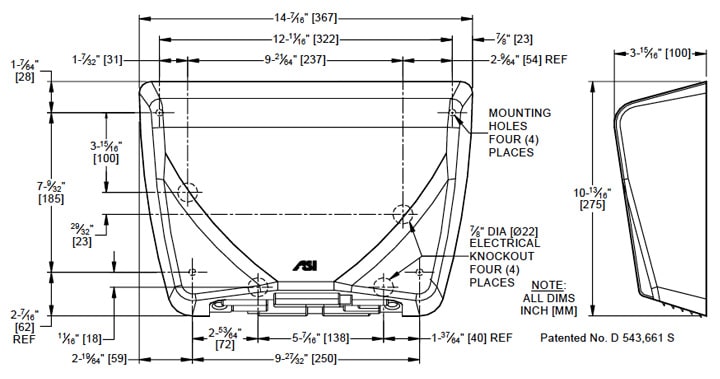

Measurement Diagram:
Alternatives:
Looking for a similar format dryer from the renowned Dyson Airblade family? See the compact but powerful Dyson "V" (HU02) hand dryer.
| Activation: | Automatic (infra-red) hands-free (self calibrating) |
| Mount: | Wall Mount / Surface Mount |
| Cover: | 16 Gauge drawn steel |
| Cycle Time: | Not applicable Dryer stops when hands are removed. |
| Nozzle: | Fixed directional outlet grill |
| Power: | 2022 Watts, 110-120V (17.6A), 50/60Hz |
| Motor: | Brush type, dual ball bearings |
| Fan: | Single Inlet Centrifugal |
| Airspeed: | 186 CFM |
| Heating Element: | 1857W Nichrome wire with auto reset circuit breaker |
| Filter: | None |
| IP Rating: | Not published |
| Product Dimensions: | 14-1/2" Wide x 10-3/4" Tall x 4" Deep |
| Shipping Dimensions: | 16-3/4" Length x 12-3/4" Width x 8" Height |
| Shipping Weight: | 12.7 lbs. |
| UPC / GTIN: | Not Published |
| Manufacturer Model No.: | 10-0185 |
| Country of Manufacture: | Taiwan |
| Warranty: | 5 Year Manufacturer Limited Warranty |
| Additional Comments: | Taiwan |
Architectural Specifications:
Surface Mounted Sensor Hand Dryer shall operate automatically from IR sensor that shall activate dryer when hands are placed in sensor zone. Motor and heating element shall have internal resetting automatic thermal protection. Cover shall be fabricated of one-piece, 16 gauge (.063", {1.6}) thick drawn steel or type 304 stainless steel and shall have all exposed surfaces finished with acid, chip and scratch resistant porcelain enamel on steel or bright or satin finish on stainless steel. Fixed directional air vanes shall be heavy duty, rust proof and tamper resistant. Air intake slots shall not allow access to internal parts. Back plate shall be furnished with vibration isolating mounting bushings. Circuitry shall have self-adjusting time-out and fail-safe off protection controlled by a microprocessor that shall detect and reject false signals and shall automatically self calibrate to provide uniform sensitivity over its entire life span. Entire unit shall be internally electrically grounded. Dryer unit shall have approval and be listed under the re-examination services of Underwriters Laboratories, Inc. Unit shall be warranted against defects in materials or workmanship for Ten (10) years. Owner’s Manual (OM) and Mounting Template are supplied with each unit.
