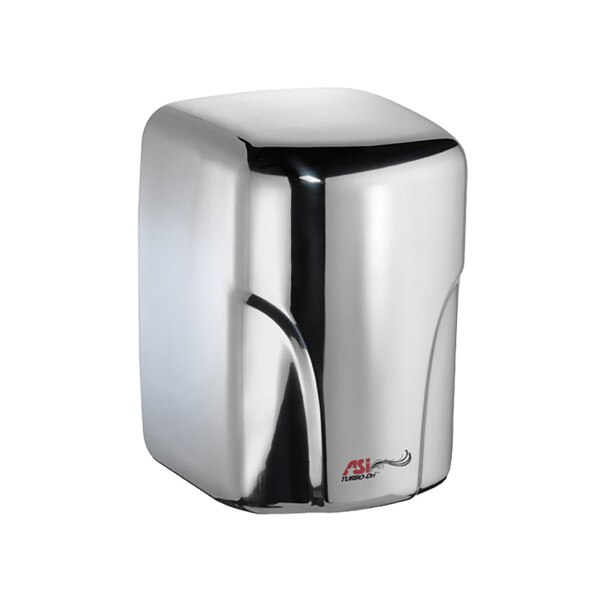

ASI 10-0197-1-92 TURBO-Dri High Speed, Automatic Hand Dryer, Bright Stainless, 110-120V
GreenSpec certification, adjustable airspeed and temperature and a 12 second dry time make this hand dryer a great all around performer. There's even an available recess kit.
Durable construction (18 gauge steel).
Quick dry time.
Quiet operation (59dB - 72dB based on air speed adjustment)
5 Year limited manufacturer's warranty
Energy efficient
Certifications:
Measurement Diagram:
Alternatives:
Have you considered the FastDry HK-JA02-120 ? Similar features, amazing price.
| Activation: | Automatic (infra-red) hands-free (self calibrating) |
| Mount: | Wall Mount / Surface Mount |
| Cover: | 16 Gauge drawn stainless steel, polished finish |
| Cycle Time: | Not applicable Dryer stops when hands are removed. |
| Nozzle: | Concentrated oval nozzle |
| Power: | 1300-1700 Watts, 110-120V (14.6A), 50/60Hz |
| Motor: | Brush type, dual ball bearings |
| Fan: | Multi-Inlet Centrifugal |
| Airspeed: | 68-116 CFM, 156-224 MPH |
| Heating Element: | 400-900 Watt Nichrome wire with auto reset circuit breaker |
| Filter: | None |
| IP Rating: | Not published |
| Product Dimensions: | 8" Wide x 11-1/4" Tall x 7-1/4" Deep |
| Shipping Dimensions: | 13-3/4" Length x 10-1/2" Width x 9-1/2" Height |
| Shipping Weight: | 15 lbs. |
| UPC / GTIN: | Not Published |
| Manufacturer Model No.: | 10-0197-1-92 |
| Country of Manufacture: | Taiwan |
| Warranty: | 5 Year Manufacturer Limited Warranty |
Architectural Specifications:
Surface Mounted High-Speed Hand Dryer shall operate automatically from IR sensor activated by beam reflection from objects placed in sensing zone. Motor and heating element shall have internal resetting automatic thermal protection. Unit shall develop 68 CFM (116 m3 /h) of heated air and shall provide drying time of less than 12 seconds. Warm air output temperature and velocity shall be adjustable by owner. Cover shall be fabricated of heavy-duty, one piece formed stainless steel 1/16" [1,5] thick finished on all exposed surfaces as satin or bright polished (by option specified) or heavy-duty, one piece formed steel 1/16" [1,5] thick finished on all exposed surfaces with white porcelain enamel. Fixed directional air nozzle shall be heavy-duty, rust proof and highly tamper resistant. Air intake slots shall not allow access to internal parts. Circuitry shall have self-adjusting time-out and fail-safe off protection controlled by a microprocessor that shall detect and reject false signals and shall automatically self-calibrate to provide uniform sensitivity over its entire life span. Sensitivity shall be adjustable by owner to suit mounting conditions and intended usage population. Entire unit shall be internally electrically grounded. Motor speed shall be adjustable by owner in range between maximum power and maximum efficiency. Dryer unit shall have C-UL-US® , CE, and TÜV approval and be listed under the re-examination services of Underwriters Laboratories, Inc. Unit shall be warranted against defects in materials or workmanship for five (5) years.
