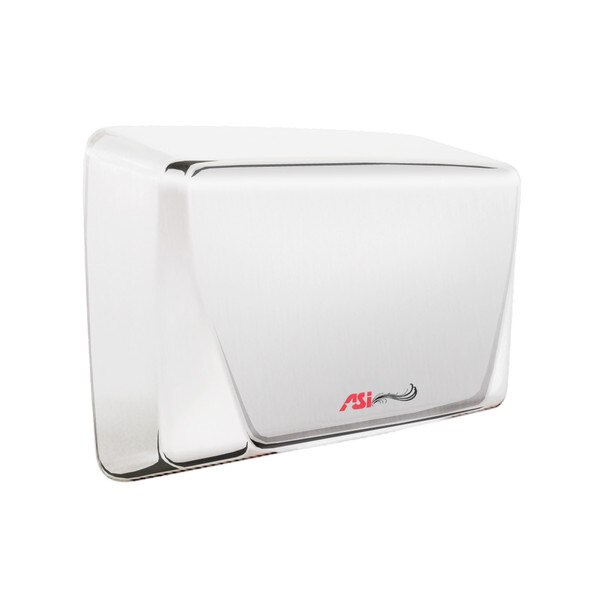

ASI 10-0199-1-92 TURBO-Dri High Speed, Automatic Hand Dryer, Bright Stainless, 110-120V
Surface mount, ADA compliant, high speed hand dryer with heavy duty 18 gauge drawn steel cover.
Vandal resistant construction
Quick dry time.
Modern design style
5 Year limited manufacturer's warranty
Certifications:

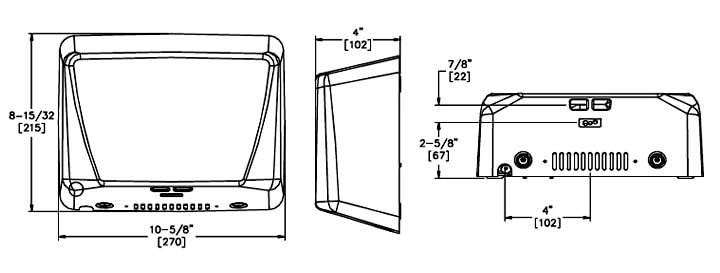

Measurement Diagram:
| Activation: | Automatic (infra-red) hands-free (self calibrating) |
| Mount: | Wall Mount / Surface Mount |
| Cover: | Stainless Steel, Polished Finish |
| Cycle Time: | Not applicable Dryer stops when hands are removed. |
| Nozzle: | Fixed outlet grill |
| Power: | 1000 Watts, 110-120V (10.4A Max), 50/60Hz |
| Motor: | Brush type, dual ball bearings |
| Fan: | Multi-Inlet Centrifugal |
| Airspeed: | 42-60 CFM, 150-230 ft/s |
| Heating Element: | 325-450 Watt with auto reset circuit breaker |
| Filter: | None |
| IP Rating: | Not published |
| Product Dimensions: | 10-41/64" Wide x 8-1/2" Tall x 3-15/16” Deep |
| Shipping Dimensions: | 13-3/4" Length x 10" Width x 5-3/4" Height |
| Shipping Weight: | 9.2 lbs. |
| UPC / GTIN: | Not Published |
| Manufacturer Model No.: | 10-0199-1-92 |
| Country of Manufacture: | Taiwan |
| Warranty: | 5 Year Manufacturer Limited Warranty |
Architectural Specifications:
ADA Compliant Surface Mounted High-Speed Hand Dryer shall operate automatically from IR sensor activated by beam reflection from objects placed in sensing zone. Motor and heating element shall have internal resetting automatic thermal protection. Unit shall develop 60 CFM (102 m3 /h) of heated air and shall provide drying time of less than 15 seconds. Cover shall be heavy-duty, one piece formed 18 gage stainless steel bright or satin finished on all exposed surfaces (by option specified) or heavy-duty, one piece formed 18 gage steel finished on all exposed surfaces with white porcelain enamel. Fixed directional air nozzle shall be heavy-duty, rust proof and highly tamper resistant. Air intake slots shall not allow access to internal parts. Circuitry shall have self-adjusting time-out and fail-safe off protection controlled by a microprocessor that shall detect and reject false signals and shall automatically self-calibrate to provide uniform sensitivity over its entire life span. Entire unit shall be internally electrically grounded. Dryer unit shall have C-UL-US® and CE approval and be listed under the re-examination services of Underwriters Laboratories, Inc. Unit shall be warranted against defects in materials or workmanship for five (5) years. Complete Owner’s Manual (OM) and Installation Guide (IG) shall be provided with unit.
