ASI 10-0334-S Deck Mount, Automatic Liquid Soap Disp., Satin
TOUCHLESS OPERATION: A single shot of liquid soap or gel hand sanitizer is automatically dispensed by a battery powered mechanism when hands are placed in the sensor zone.
Dispenser body is type 304 stainless steel with a satin finish. An indicator LED shall provide status notification of battery condition, contents level and condition, and user sensor detection. Supply tank installed under vanity is clear with graduated markings to continuously provide contents level indication.
Soap and Gel Hand Sanitizer Requirements: Proper usage of this dispenser requires, that only soap or gel hand sanitizer within the following range for viscosity and pH may be used.
Liquid Soap Viscosity Range: (mPa·s or cP): 5-3k
Gel Hand Sanitizer Viscosity Range (mPa·s or cP): 3.5k-23k
pH Range: 5.5 ~ 8.5
- Powered by 4 AA-size batteries (not included) or optional AC adapter (72-ACA, not included).
- Capacity: 50.7 oz. (1500 ml) of liquid soap or gel hand sanitizer

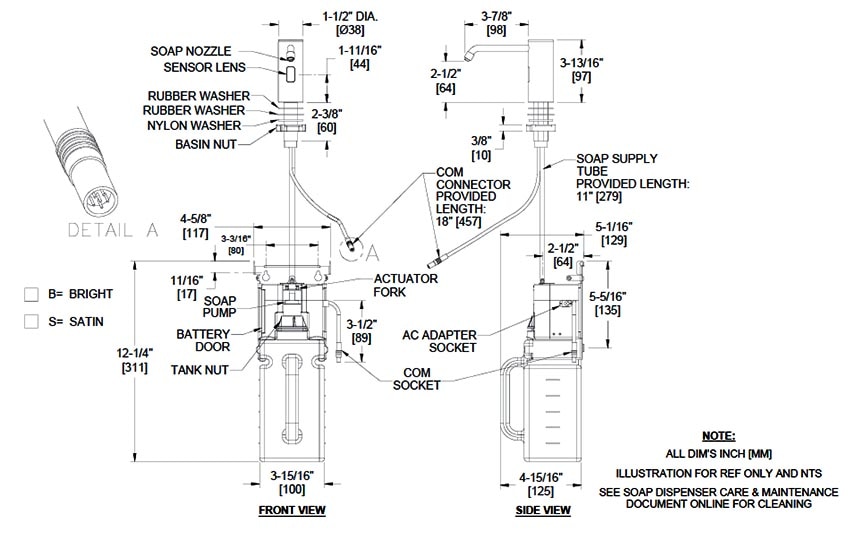

Measurement Diagram:
| Mount: | Deck (Counter, Lavatory) Mount |
| Operation: | Automatic (IR Sensor) |
| Soap / Sanitizer Type: | Liquid / Gel |
| Capacity: | 51 oz. |
| Cover Material: | Stainless Steel, Satin Finish |
| Power: | 4 AA Batteries (not included) Optional AC Adapter (purchased separately as 10-72-ACA) |
| Overall Dimensions (Above Counter): | 3-13/16" Tall x 5-3/8" Deep x 1-1/2" Wide |
| Net Weight: | 2 lbs. |
| Shipping Dimensions: | 12" Length x 7" Width x 7" Height |
| Shipping Weight: | 3 lbs. |
| UPC / GTIN: | Not Published |
| Country of Manufacture: | Taiwan |
| Additional Information: | This model is both soap and alcohol based sanitizer compatible (with proper viscocity). |
Architectural Specifications:
Vanity Mounted Stainless Steel Automatic Liquid Soap and Sanitizer Dispenser shall hold and dispense 51 Fl Oz [1.5 L] of liquid soap or liquid hand sanitizer having a pH in range 7 ± 1.5 and soaps only having viscosity in range 5–3k cP (mm²/s [mPa•s]) or liquid sanitizers having viscosities in range 3.5k - 5.5k cP (mm²/s [mPa•s]). Dispenser spout body shall be type 304 stainless steel alloy 18-8 and all exposed stainless steel surfaces shall be satin finish or bright finish as chosen by suffix code (-S for satin or -B for bright). Dispenser shall be powered by four (4) AA-size (1.5V) batteries (by others) and shall operate automatically from IR sensor that shall activate filled products dispensing when hands are placed in sensor zone. An optional AC adapter is available (order Model № 72-ACA separately). Sensor detection range shall be preset at 4-3/4" ± 1-1/2" [121 ± 38] and shall self-compensate for lighting conditions. An indicator LED shall provide status notification of battery condition, soap or sanitizer level and condition, and user sensor detection. Unit shall dispense a volume of .034 ~ .051 fl oz (1 ~ 1.5 ml) of liquid soap or sanitizer during each activation. Supply tank installed under vanity is clear with graduated markings to continuously provide soap or sanitizer level indication. An Owner’s Manual and Installation Guide (OM & IG) and Mounting Template (MT) shall be provided with unit in carton.
