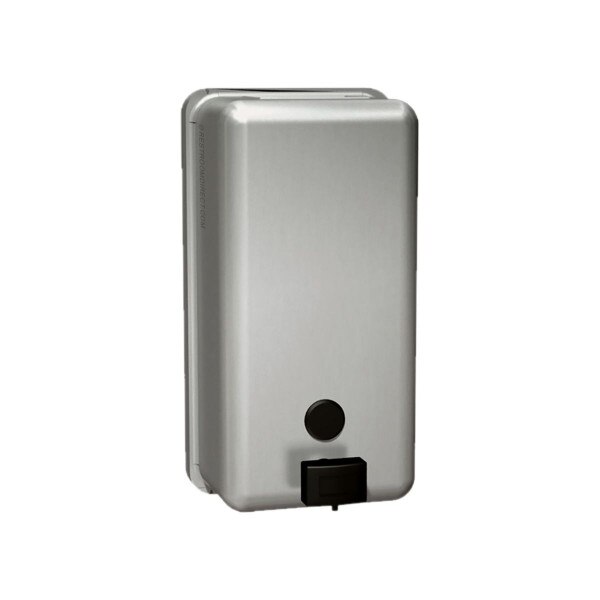

ASI 10-0347 Push Button, Wall Mount, Liquid Soap Dispenser, Stainless Steel, Vertical
 | Please note this dispenser is NOT compatible with Hand Sanitizer. |
Push button to dispense soap. Unit is refilled through hinged door at top requiring special key (supplied) to open. Soap tank will continue to feed properly until soap level is below valve intake port. Tank supply is replenished manually.
>Soap Requirements: Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.
>Viscosity Range (mPa·s or cP): 100 – 3500
>pH Range: 5.5 ~ 8.5
| Mount: | Wall / Surface |
| Operation: | Push Button |
| Cover Material: | Stainless Steel |
| Power: | None |
| Soap Type: | Liquid soaps having a pH in range 7 ± 1.5 and viscosity in range 1-3000 cP (mPa•s). |
| Capacity: | 40 oz. |
| Dispense Amount: | Not published |
| Overall Dimensions: | 4-13/16" Wide x 8-3/16" Tall x 3-15/16" Deep |
| Net Weight: | 1.6 lbs. |
| Shipping Dimensions: | 9" Length x 5" Width x 5" Height |
| Shipping Weight: | 1.9 lbs. |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | Unit is refilled through hinged door at top requiring special key (supplied) to open. Note, this is not the standard E114 key, but rather 10-L-28 which is a flat metal key. |
Architectural Specifications:
Surface Mounted Vertical Soap Dispenser shall have a capacity of 40 oz (1.2 L) of liquid soaps having a pH in range 7 ± 1.5 and viscosity in range 100-3500 cP (mPa•s). Soaps containing reportable salts, chlorides and alcohols should be avoided. Dispenser shall be fabricated of 20 gage type 304 stainless steel, alloy 18-8. All exposed surfaces shall be satin finish (or Powder Coated (PC) Matte Black finish if suffix -41 is added to Model №). Valve shall be a plastic valve body and push button with stainless steel and plastic internal parts. Valve operation shall comply with 2010 ADA Accessibility Standards and ANSI A.117.1 by requiring no more than 5 lbsf (22.2 N) pressure to actuate and require no grasping or twisting by operator. A tamper resistant sight gauge shall be provided. Unit shall have a hinged stainless steel refill door on top of unit, which is opened with special key provided.
