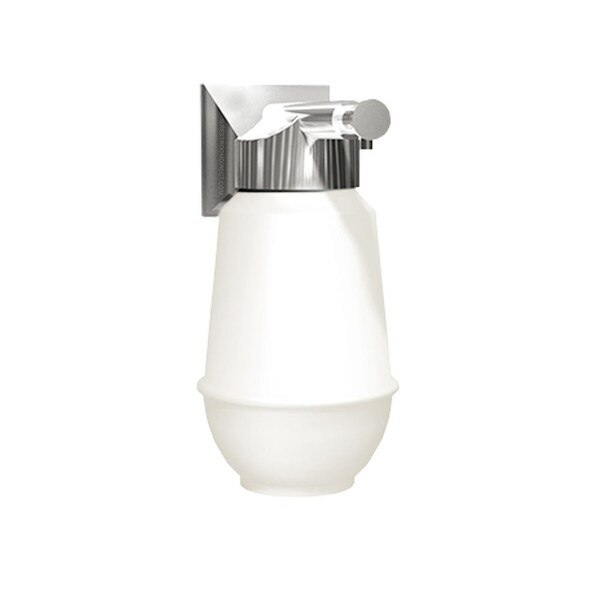

ASI 10-0350 Wall Mount, Push Button, Liquid Soap Dispenser, Surgical Type
Dispenses antiseptic solutions and synthetic detergent soaps. Chrome plated brass bracket.
>Capacity: 16 ounces (0.5 L) white polyethylene globe.
>Soap Requirements: Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.
>Viscosity Range (mPa·s or cP): 100 – 2500
>pH Range: 5.5 ~ 6.5
Mount: | Wall / Surface |
Operation: | Push Button |
Cover Material: | Pump Assy: Chrome plated brass Soap Tank: White polyethylene |
Power: | None |
Soap Type: | Liquid soap or antiseptic solution |
Capacity: | 16 oz. |
Dispense Amount: | Not published |
Overall Dimensions: | 3-3/8" Wide x 6-1/2" Tall x 5-1/8" Deep |
Net Weight: | 0.5 lbs. |
Shipping Dimensions: | 8" Length x 6" Width x 4" Height |
Shipping Weight: | 0.6 lbs. |
Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
UPC / GTIN: | Not published |
Country of Manufacture: | Not published Buy American Act compliant |
Comments: | Unit is reloaded by unlocking soap tank from wall bracket. |
Architectural Specifications:
Unit is secured to a wall plate which issurface mounted to wall or partition using No10 self tapping screws(supplied). For maximum usability and compliance withADA Accessibility Guidelines, unitshould be installed so that valve is 54" (1371mm) maximum above finished floor (AFF) when clear side access is provided; 48" (1219mm) AFF. with forward reach access only and 46" (1168mm) with side reach over an obstruction (ie: vanity). Recommended installation is 42" (1066mm) AFF or 6" (152mm) minimum above wash basin.
