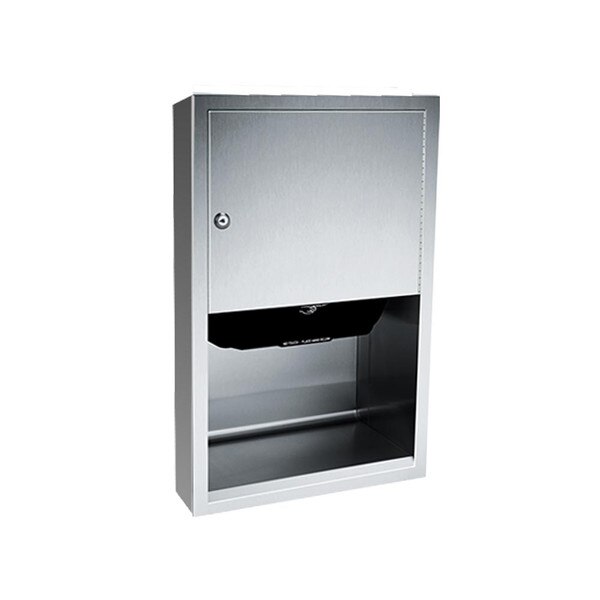

ASI 10-045210AC-9 Automatic Paper Towel Dispenser, Roll Type, Surface Mt
Proximity sensing no-touch unit dispenses a pre-set length per cycle from 8″ or 9″ wide standard towel roll up to 800 ft. (244m) long and has stub roll capability for continuous dispensing.
Surface mounted with stainless steel collar.
Powered by internal low-voltage adapter (supplied) using 110-240VAC, 50/60 Hz and providing output of 5VDC @ 1A.

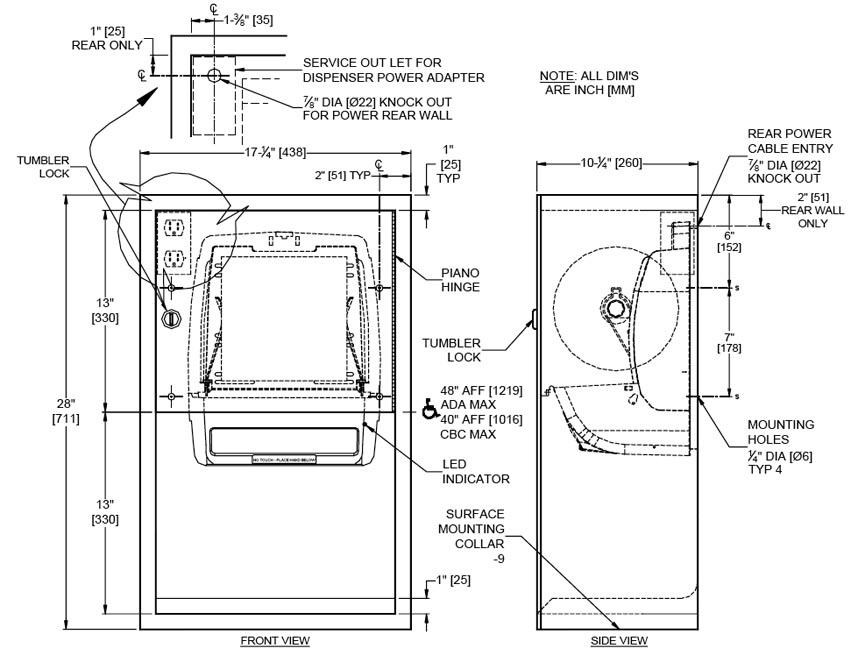

Measurement Diagram:
| Type: | Automatic, Roll Type Commercial Paper Towel Dispenser |
| Primary Material: | Stainless Steel |
| Color / Finish: | Satin (Brushed) |
| Installation Type: | Wall / Surface |
| Capacity: | 1 Std Commercial-Type PT Roll plus 4" Stub Roll |
| Power: | 110-120V (Standard), 300 Watts or Less |
| ADA Compliant: | No (Projects > 4" out from wall) |
| Overall Dimensions: | 17-1/2" Wide x 28" Tall x 10-1/4" Deep |
| Rough-In: | Not Applicable |
| Shipping Dimensions: | 31" Length x 21" Width x 12" Height |
| Shipping Weight: | 24.5 lbs. |
| Manufacturer Model No.: | 10-045210AC-9 |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Warranty: | Warranted to be free from defects in material and workmanship for a period of one (1) year from date of invoice. |
| Additional Comments: | Tumbler lock uses ASI key: E-114. |
Architectural Specifications:
Surface Mounted Automatic Roll Paper Towel Dispenser shall hold and dispense one 8" wide [203] x 8" Dia. [Ø203] standard towel roll up to 800 ft. (244m) long and one 8" wide [203] stub roll up to 4" Dia. [Ø102]. Automatic Touchless Roll Towel Dispenser shall be powered by CUL-US and CE approved internal low-voltage adapter (supplied) using 110-240VAC, 50/60 Hz and providing output of 6VDC @ 2A and shall operate automatically to activate towel dispensing when hands are placed in sensor zone from 1/2" [13] below sensor to 4-1/2" [114] below sensor. Unit shall feed out a length of towel during each activation selected by owner by setting length, delay and paper saver switches. Unit shall have an internal towel cut-off bar. Cabinet and frame shall be fabricated of 22 & 20 gage type 304 stainless steel alloy 18-8, and towel dispenser door shall be 18 gage same grade. All exposed surfaces shall have satin finish protected by PVC film easily removed after installation. Door shall be attached to cabinet at side with a full-length 3/16" Dia. [Ø4,8] stainless steel multi-staked piano hinge and shall have a full return and hemmed bottom edge for user safety. Door shall be held closed with a tumbler lock keyed alike to other ASI washroom equipment. Face trim shall be 1" [25] wide formed from one piece with no miters, welding or open seams and have four (4) 1/4" [6,4] square returns to Surface Mounting Collar (provided). Structural assembly of all components shall be of welded construction. Cabinet shall have no exposed fastening devices or spot-welded seams.
