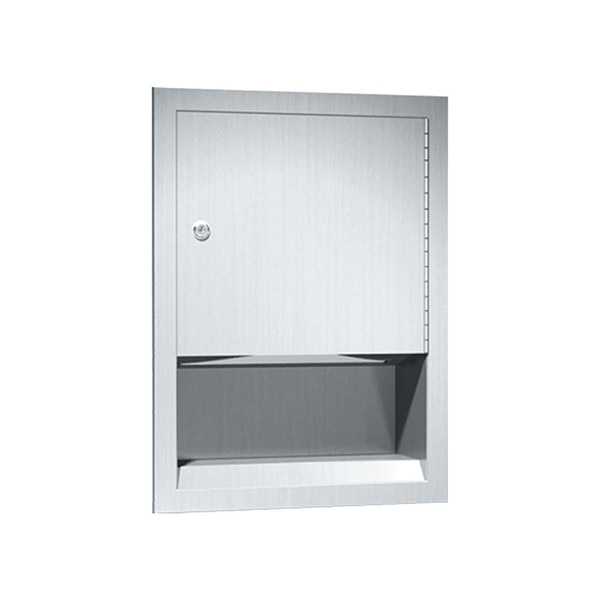

ASI 10-0457 Multi/C-Fold Paper Towel Dispenser, Recessed Mount, Stainless Steel
Dispenses 350 C-fold or 500 multi-fold paper towels; well-suited for smaller washrooms with less space and traffic.
Towels are self-feeding until supply is depleted. Unit may be reloaded with a partial load in-place and will continue to feed properly.

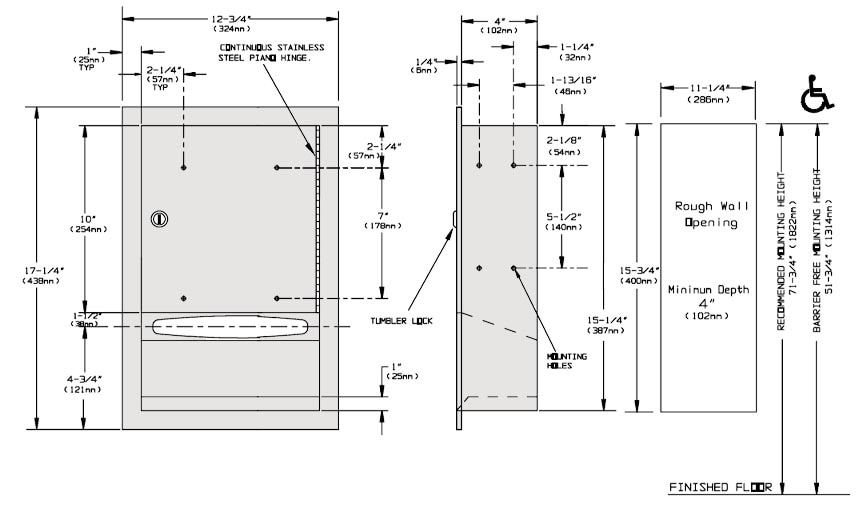

Measurement Diagram:
Alternatives:
To see all of the products in this family, click HERE.
| Type: | C-Fold / Multi-Fold Paper Towel Dispenser |
| Primary Material: | Stainless Steel |
| Color / Finish: | Satin (Brushed) |
| Installation Type: | Wall / Recessed |
| Capacity: | 200-400 C-Fold (350-525 Multi) |
| Power: | No power required |
| ADA Compliant: | Yes |
| Overall Dimensions: | 12-3/4" Wide x 17-1/4" Tall x 4-1/4" Deep |
| Rough-In: | 11-1/4" Wide x 15-3/4" Tall x 4" Deep |
| Shipping Dimensions: | 21" Length x 16" Wide x 6" Height |
| Shipping Weight: | 7.2 lbs. |
| Manufacturer Model No.: | 10-0457 |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Warranty: | Warranted to be free from defects in material and workmanship for a period of one (1) year from date of invoice. |
| Additional Comments: | Tumbler lock uses ASI key: E-114. |
Architectural Specifications:
Recessed Paper Towel Dispenser shall hold and dispense 475 standard multi-fold or 350 standard C-fold paper towels. Towel dispenser, door, frame and cabinet shall be fabricated of alloy 18-8 stainless steel, type 304, 22 gauge. All exposed surfaces shall be No 4 satin finish and be protected during shipment with a PVC film easily removable after installation. Towel dispensing slot shall have a fully hemmed-in rolled edge for snag-free dispensing and user safety. Door shall be fabricated in double-pan construction with a fiberboard filler and shall be attached to cabinet at side with a full length 3/16′′ dia. (5mm) stainless steel multi-staked piano hinge and be held closed with a tumbler lock keyed alike to other ASI Washroom Equipment. Face trim shall be 1′′ (25.4mm) wide formed from one piece with no mitres, welding or open seams and have 1/4′′ (6.35mm) square return to wall. Structural assembly of all components shall be of welded construction.
