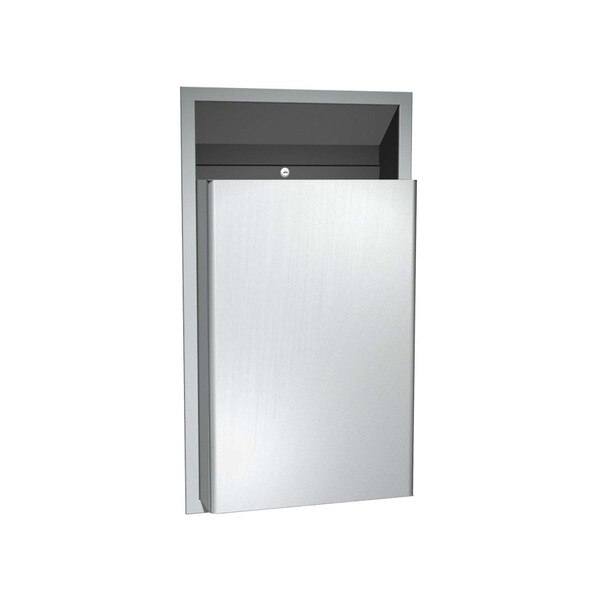

ASI 10-0458 Semi-Recessed Waste Receptacle, 12 Gallons, 4" Recessed/4" Projection
Semi-Recessed Waste Receptacle has a capacity of 12 gal (46 liters).
Frame, waste receptacle and cabinet are fabricated of 22 gauge stainless steel alloy 18-8, type 304.
Waste receptacle has hemmed edges for safety and internal hooks for hanging a reusable vinyl bag (optional, supplied separately, model 58-PY for 12 gal).
A tumbler lock keyed retains waste receptacle. Container locks into cabinet, removable for servicing.

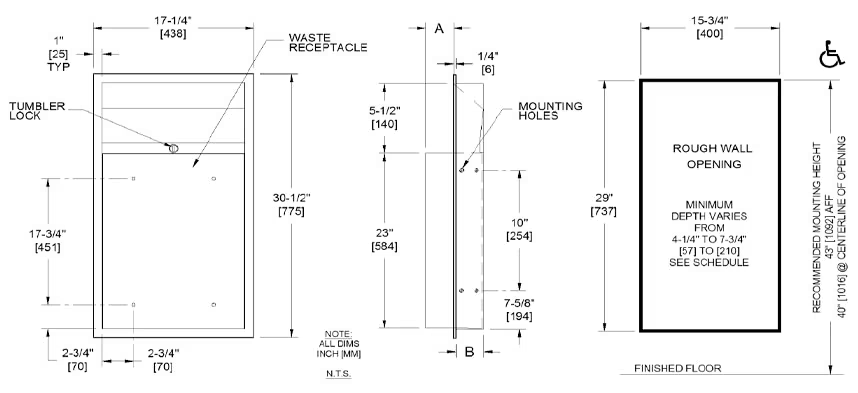

Measurement Diagram:
Alternatives:
To see all of the products in this family, click HERE.
| Primary Material: | Stainless Steel |
| Finish / Color: | Satin |
| Installation Type: | Wall / Recessed |
| Capacity: | 12 Gallon Waste Receptacle |
| Overall Dimensions: | 17-1/4" Wide x 30-1/2" Tall x 8" Deep |
| Net Weight: | 20 |
| Shipping Dimensions: | 33" Length x 22" Width x 9-1/4" Height |
| Shipping Weight: | 20.4 lbs. |
| Warranty: | 1 Yr. Manufacturer's Limited |
| Manufacturer Part No.: | 10-0457 |
Architectural Specifications:
Semi-Recessed Waste Receptacle shall have a capacity of 12 gal (46 L), or 18 gal (68 L) depending upon option chosen (see chart). Frame, waste receptacle and cabinet shall be fabricated of 22 gauge stainless steel alloy 18-8, type 304. Waste receptacle shall have hemmed edges for safety and shall have internal hooks for hanging a reusable vinyl bag (optional, supplied separately, model 58-PY for 12 gal or 25-PY for 18 gal). A tumbler lock keyed alike to other ASI washroom equipment shall retain waste receptacle. Face trim shall be 1" [25] wide formed from one piece with no miters, welding or open seams and have 1/4" [6] square return to wall. Structural assembly of all components shall be of welded construction. All exposed surfaces shall be satin finish and be protected during shipment with PVC film easily removable after installation.
