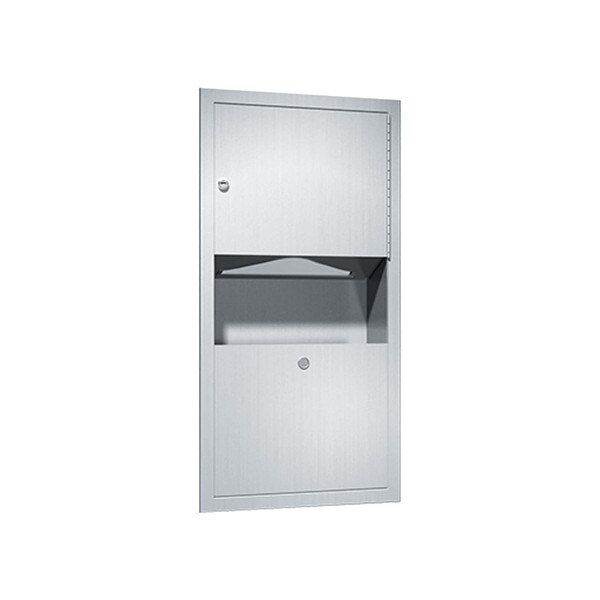

ASI 10-0462-AD Recessed Multi/C-Fold Paper Towel Dispenser & Waste Rec., 2 Gal (350C/475M)
| Type: | C-Fold / Multi-Fold Paper Towel Dispenser with Integrated Waiste Container |
| Primary Material: | Stainless Steel |
| Color / Finish: | Satin (Brushed) |
| Installation Type: | Wall / Recessed |
| Capacity: | 350 C-Fold or 475 Multi-Fold Paper Towels |
| Waste Bin Capacity: | 2 Gal. |
| Power: | No power required |
| ADA Compliant: | Yes |
| Overall Dimensions: | 14-1/4" Wide x 28" Tall x 4-1/4" Deep |
| Rough-In: | 12-3/4" Wide x 26-1/2" Tall x 4" Deep |
| Shipping Dimensions: | 32" Length x 17" Width x 6" Height |
| Shipping Weight: | 14.2 lbs. |
| Manufacturer Model No.: | 10-0462-AD |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Warranty: | Warranted to be free from defects in material and workmanship for a period of one (1) year from date of invoice. |
| Additional Comments: | Tumbler locks use ASI key: E-114. |
Architectural Specifications:
Recessed Paper Towel Dispenser and Waste Receptacle shall hold and dispense 475 standard multi-fold or (350) standard Cfold paper towels and shall have a waste capacity of 2 gal. (7.6 liters). Door and cabinet shall be fabricated of alloy 18-8 stainless steel, type 304, 22 gauge; all exposed surfaces shall have No 4 satin finish and be protected during shipment with a PVC film that shall be easily removable after installation. Door shall be of double-pan construction with fiberboard filler and shall be attached to cabinet at side with a full length 3/16′′ dia. stainless steel multi-staked piano hinge and shall be held closed with a tumbler lock keyed alike to other ASI washroom equipment. Towel dispensing slot shall have a fully deburred edge for snagfree dispensing and user safety. Waste receptacle shall have hemmed edges and a rolled-edge finger-hole for ease of service removal and maintenance safety. Structural assembly of body and door components shall be of welded construction.
