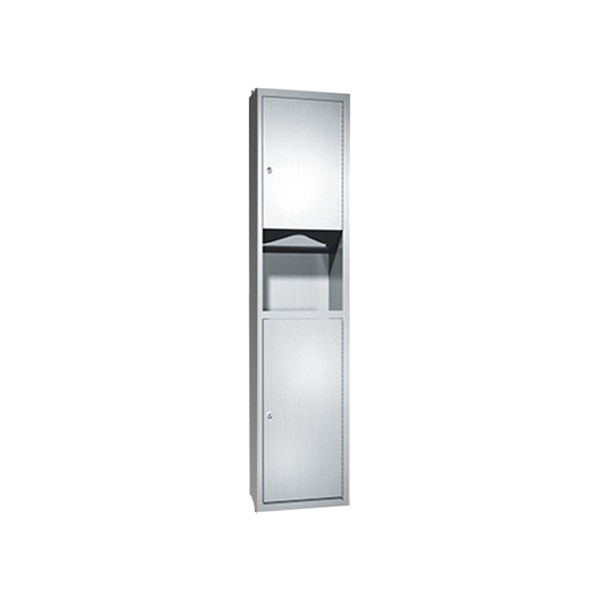

ASI 10-0467-2 Semi-Rec Multi/C-Fold Paper Towel Dispenser & Waster Receptacle, 7 Gal. (600C/800M)
Dispenses 600 C-fold, 800 multi-fold or 1100 single-fold paper towels and includes a stainless steel waste receptacle with the capacity of 7 gal. (26 L).
Adjustable guide provided to allow dispensing of multi-fold or C-fold paper towels.
Semi-recessed with 2″ stainless steel collar.
| Type: | C-Fold / Multi-Fold Paper Towel Dispenser with Integrated Waiste Container |
| Primary Material: | Stainless Steel |
| Color / Finish: | Satin (Brushed) |
| Installation Type: | Wall / Recessed |
| Capacity: | 600 C-Fold or 800 Multi-Fold Paper Towels |
| Waste Bin Capacity: | 7 Gal. |
| Power: | No power required |
| ADA Compliant: | Yes |
| Overall Dimensions: | 13" Wide x 55" Tall x 6-1/4" Deep (Projects 2-1/4" out from wall.) |
| Rough-In: | 11-1/2" Wide x 53-1/2" Tall x 4" Deep |
| Shipping Dimensions: | 57" Length x 15" Width x 8" Height |
| Shipping Weight: | 37.7 lbs. |
| Manufacturer Model No.: | 10-0467-2 |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Warranty: | Warranted to be free from defects in material and workmanship for a period of one (1) year from date of invoice. |
| Additional Comments: | Tumbler locks use ASI key: E-114. |
Architectural Specifications:
Semi-Recessed Paper Towel Dispenser and Disposal Unit shall hold and dispense 800 standard multi-fold or 600 standard C-fold or 1100 standard single fold paper towels and shall have a waste capacity of 7 gal. (26 liters). Towel dispenser, door, frame, waste container and cabinet shall be fabricated of alloy 18-8 stainless steel, type 304, 22 gauge; all exposed surfaces shall have No 4 satin finish. Towel dispensing slot shall have a fully hemmed-in rolled edge for snag-free dispensing and user safety. Adjustable guide shall be provided to allow dispensing of multi-fold or C-fold paper towels. Doors shall be fabricated in double-pan construction with fiberboard filler and shall be attached to cabinet at side with a full length 3/16" dia. stainless steel multi-staked piano hinge and be held closed with tumbler locks keyed alike to other ASI washroom equipment. Waste container shall have hemmed edges for safety. Face trim shall be 1′′ (25mm) wide formed from one piece with no mitres, welding or open seams and have 1/4′′ (6mm) square return to wall. Structural assembly of all components shall be of welded construction. Unit shall be supplied with SR collar to convert to semi-recessed mounting.
