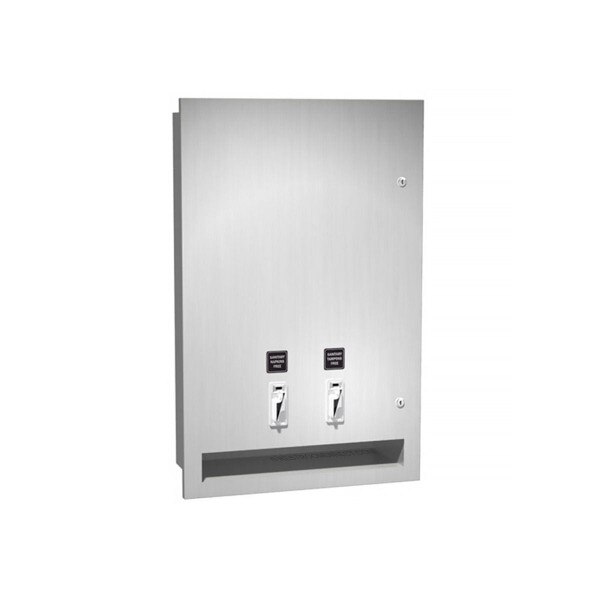

ASI 10-0468-F Recessed Sanitary Napkin & Tampon Dispenser, Free Operation (30N/27T)
Dispenses 30 napkins and 27 tampons. Doors are held closed with two (2) tumbler locks. Internal coin-box is keyed differently than door locks. Dispensing mechanisms are fastener mounted internally to provide ability to change mechanisms for coinage denomination. Weights for each feed track are supplied.
Allows Free (no coin) operation
| Cover Material: | 18 Gauge Type 304 Stainless Steel Alloy 18-8 |
| Mount: | Wall / Recessed |
| Capacity: | 30 Sanitary Napkins | 27 Tampons of specified size |
| Operation: | Twist Knob |
| Denomination: | Free operation (no coin needed) |
| Locks: | Yes, three. Two for front cabinet and one (keyed differently) for coinbox. |
| Overall Dimensions: | 17-1/4" Wide x 27-1/4" Tall x 6-1/4" Deep (Projects 1/2" out from wall, not including knobs) |
| Rough-In: | 16" Wide x 26" Tall x 6" Deep |
| Net Weight: | 27.7 lbs. |
| Shipping DImensions: | 29" Length x 19" Width x 8" Height |
| Shipping Weight: | 31.7 lbs. |
| Comments: | Weights for each feed track shall be supplied (and must be used for proper dispensing. Buy American Act Compliant |
Architectural Specifications:
Sanitary Napkin / Tampon vendor shall dispense 30 napkins and 27 tampons of specified sizes and shall have cabinet fabricated of alloy 18-8 stainless steel, type 304, 18 gauge; all exposed surfaces shall have No 4 satin finish and be protected during shipment with a PVC film easily removable after installation. Door shall be fabricated of 18 gauge same grade stainless steel and shall be attached to cabinet with a full length 3/16′′ dia. (5mm) stainless steel multi-staked piano hinge and shall be held closed with two (2) tumbler locks keyed alike to other ASI washroom equipment. Internal coin-box shall be keyed differently than door locks. Dispensing mechanisms shall be fastener mounted internally to provide ability to change mechanisms for coinage denomination. Structural assembly of body and door components shall be of welded construction and have no exposed fasteners or welded seams. Weights for each feed track shall be supplied. Factory installed coin operation denomination shall be_________ (please fill in 25¢ or 50¢ or FREE ) and add denomination as suffix to model No (ie: 0468-25).
