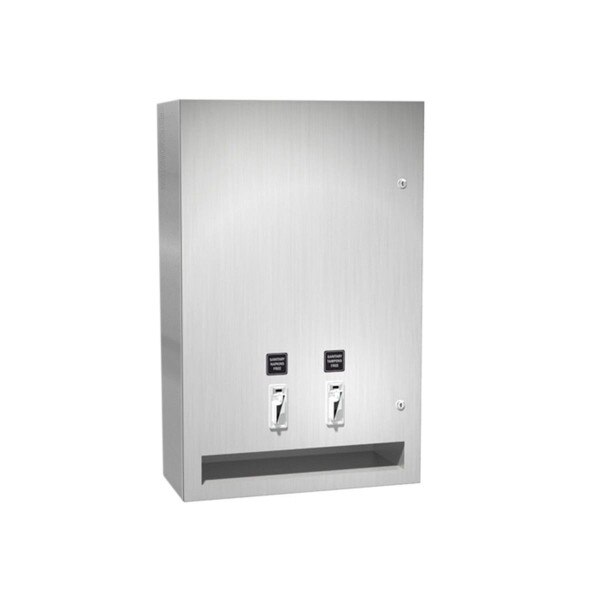

ASI 10-04684-9-F Napkin & Tampon Vendor, Wall Mount / Surface Mount, Free Operation (15N/23T)
Dispenses 15 napkins, 23 tampons. Doors are held closed with two (2) tumbler locks. Internal coin-box is keyed differently than door locks. Dispensing mechanisms are fastener mounted internally to provide ability to change mechanisms for coinage denomination. Weights for each feed track are supplied.
Surface mounted with stainless steel collar.
Allows for FREE (no coin) operation
| Cover Material: | 18 Gauge Type 304 Stainless Steel Alloy 18-8 |
| Mount: | Wall / Surface |
| Operation: | Deposit of specified coin allows operation of dispenser. Napkin and tampon dispensers operate independently. Selected product drops into vending opening after operator actuation. Indicator displays empty condition and blocks coin slot when product is depleted. |
| Denomination: | Free operation (no coin needed) |
| Capacity: | 15 Sanitary Napkins and 23 Tampons of specified sizes |
| Locks: | Yes, three. Two for front cabinet and one (keyed differently) for coinbox. |
| Overall Dimensions: | 27-1/4" Tall x 17-1/4" Wide x 4-1/2" Deep (Projects 1/2" out from wall, not including knobs) |
| Net Weight: | 28.9 lbs. |
| Shipping Dimensions: | 30" Length x 20" Width x 6" Height |
| Shipping Weight: | 31.9 lbs. |
| Comments: | Unit vend product supply is replenished on cycle determined by maintenance needs by opening door and manually reloading product into dispenser supply tracks. Track weights MUST BE USED to provide positive feed. |
Architectural Specifications:
Sanitary Napkin / Tampon vendor shall dispense 15 napkins and 23 tampons of specified sizes and shall have cabinet fabricated of alloy 18-8 stainless steel, type 304, 18 gauge; all exposed surfaces shall have No 4 satin finish and be protected during shipment with a PVC film easily removable after installation. Door shall be fabricated of 18 gauge same grade stainless steel and shall be attached to cabinet with a full length 3/16′′ dia. (5mm) stainless steel multi-staked piano hinge and shall be held closed with two (2) tumbler locks keyed alike to other ASI Washroom Equipment. Internal coin-box shall be keyed differently than door locks. Dispensing mechanisms shall be fastener mounted internally to provide ability to change mechanisms for coinage denomination. Structural assembly of body and door components shall be of welded construction and have no exposed fasteners or welded seams. Weights for each feed track shall be supplied. Factory installed coin operation denomination shall be_________ (please fill in 25¢ or 50¢ or FREE ) and add denomination as suffix to model No (ie: 04684-25).
