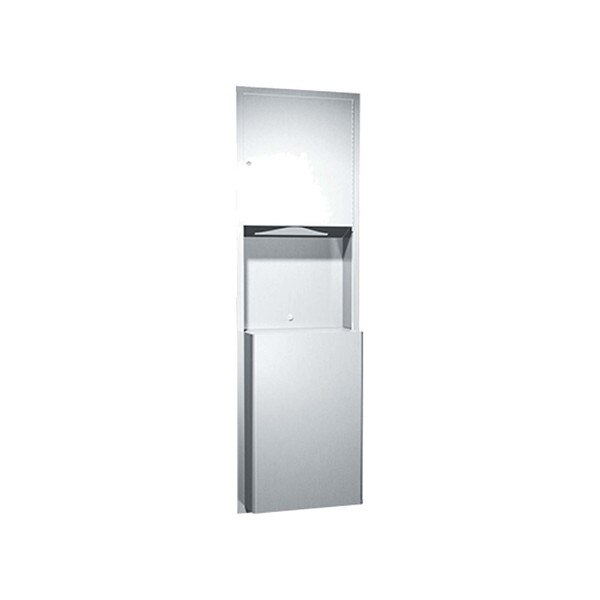

ASI 10-0469 Multi/C-Fold Paper Towel Dispenser & Waste Rec., Recessed Mount, 12 Gal. (600C/800M)
This paper towel dispenser holds up to 600 C-fold or 800 multi-fold paper towels. Integrated 12 gal. (46 L) stainless steel waste receptacle.
Towels are self-feeding until supply is depleted. Unit may be reloaded with a partial load in-place and will continue to feed properly.
Waste container is emptied manually on cycle determined by maintenance needs.
Locking compartment and receptacle retainer prevents unauthorized access or removal.

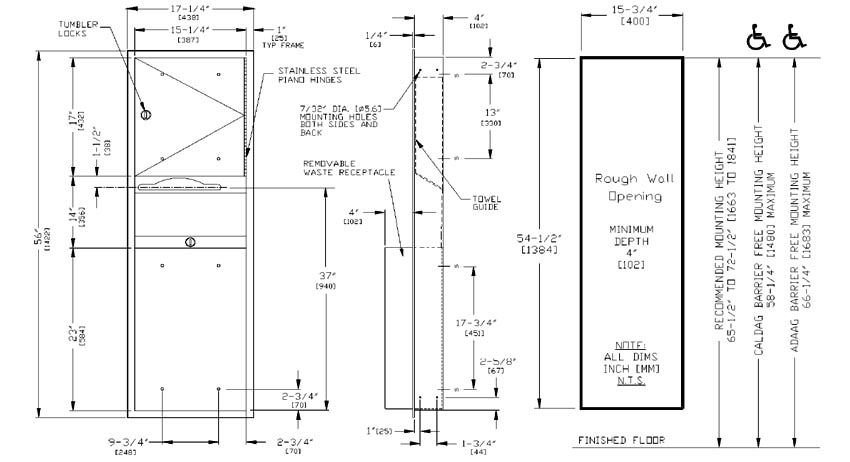

Measurement Diagram:
Alternatives:
To see all of the products in this family, click HERE.
| Type: | C-Fold / Multi-Fold Paper Towel Dispenser with Integrated Waiste Container |
| Primary Material: | Stainless Steel |
| Color / Finish: | Satin (Brushed) |
| Installation Type: | Wall / Recessed |
| Capacity: | 500-600 C-Fold or 625-800 Multi-Fold Paper Towels |
| Waste Bin Capacity: | 12 Gal. |
| Power: | No power required |
| ADA Compliant: | Yes |
| Overall Dimensions: | 15 3/4" Wide x 54 1/2" Tall x 4 1/4" Deep |
| Rough-In: | 15-3/4" Wide x 54-1/2" Tall x 4" Deep |
| Shipping Dimensions: | 59" Length x 20" Width x 10" Height |
| Shipping Weight: | 37.6 lbs. |
| Manufacturer Model No.: | 10-0469 |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Warranty: | Warranted to be free from defects in material and workmanship for a period of one (1) year from date of invoice. |
| Additional Comments: | Tumbler locks use ASI key: E-114. |
Architectural Specifications:
Recessed Paper Towel Dispenser and Waste Receptacle shall hold and dispense 800 standard multi-fold or 600 standard Cfold paper towels and shall have a waste capacity of 12 gal (46 L). Towel dispenser, door, frame, waste container and cabinet shall be fabricated of 22 gauge type 304 stainless steel alloy 18-8. All exposed surfaces shall be satin finish and be protected during shipment with PVC film easily removable after installation. Towel dispensing slot shall have a fully hemmed-in rolled edge for snag-free dispensing and user safety. Door shall be fabricated in double-pan construction with fiberboard filler and shall be attached to cabinet at side with a full-length 3/16" diameter [Ø4.8] stainless steel multi-staked piano hinge and be held closed with a tumbler lock keyed alike to other ASI washroom equipment. Waste container shall have hemmed edges for safety and shall be retained by a tumbler lock keyed alike to other ASI washroom equipment. Face trim shall be 1" [25] wide formed from one piece with no miters, welding or open seams and have 1/4" [6] square return to wall. Structural assembly of all components shall be of welded construction. Cabinet shall have no exposed fastening devices or spot-welded seams.
