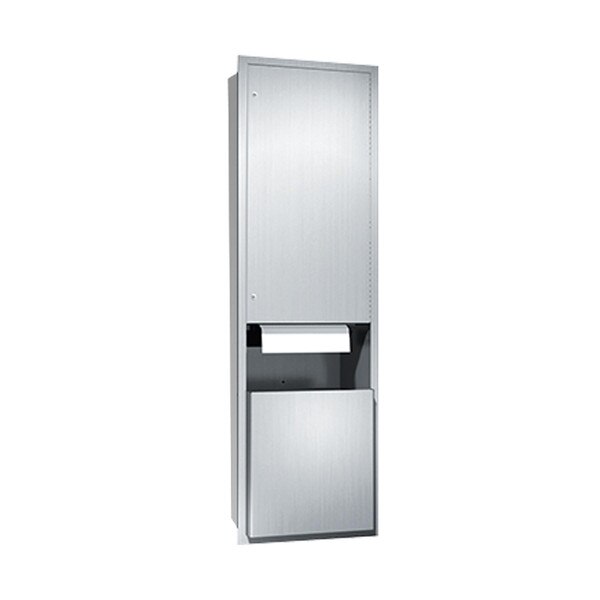

ASI 10-046921A Automatic Roll-Type Paper Towel Disp. & Waste Rec, Recessed, 12 Gal, Battery Op.
Proximity sensing no-touch unit dispenses a pre-set length per cycle from 8″ or 9″ wide standard towel roll up to 800 ft. (244m) long and has stub roll capability for continuous dispensing. 12 gal. (45.4 liters) disposal capacity.
Semi-recessed with stainless steel collar. Powered by 4 D-size batteries (not included).
Towels are dispensed one at a time automatically when hands are placed in sensor zone until supply is depleted. Unit may be reloaded with a full roll to automatically start when finished with an existing partial roll. Locking door and waste container prevents unauthorized access and removal.
| Type: | Automatic, Roll Type Commercial Paper Towel Dispenser with Integrated Waste Container |
| Primary Material: | Stainless Steel |
| Color / Finish: | Satin (Brushed) |
| Installation Type: | Wall / Recessed |
| Capacity: | One 8" Dia., 8" Wide Roll One 4" Dia. 8" Wide Stub Roll |
| Waste Bin Capacity: | 12 Gal. |
| Power: | 4 "D-Cell" Batteries (not included) |
| ADA Compliant: | Yes |
| Overall Dimensions: | 56" Tall x 17-1/4" Wide x 10-1/4" Deep |
| Rough-In: | 15-7/8" Wide x 54-5/8" Tall x 10-1/4" Deep |
| Shipping Dimensions: | 58" Length x 19" Width x 12" Height |
| Shipping Weight: | 51 lbs. |
| Manufacturer Model No.: | 10-046921A |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Warranty: | Warranted to be free from defects in material and workmanship for a period of one (1) year from date of invoice. |
| Additional Comments: | Tumbler locks use ASI key: E-114. |
Architectural Specifications:
Recessed Automatic Roll Paper Towel Dispenser With Waste Receptacle and Shelf shall hold and dispense one 8" wide [Ø203] x 8" Dia. [Ø203] standard towel roll up to 800 ft. (244m) long and one 8" wide [203] stub roll up to 4" Dia. [Ø102] and shall have a waste capacity of 12 gallons (45.4 L). Automatic Touchless Roll Towel Dispenser shall be powered by four (4) D-size batteries (not supplied) and operate automatically to activate towel dispensing when hands are placed in sensor zone from 1/2" [13] below sensor to 4-1/2" [114] below sensor. At each activation unit shall feed out a length of towel selected by owner by setting length, delay and paper saver switches. Unit shall have an internal towel cut-off bar. Cabinet, waste container and frame shall be 22 gage type 304 stainless steel alloy 18-8. Towel dispenser door shall be 18 gage same grade. All exposed surfaces shall have satin finish protected by PVC plastic film easily removed after installation. Door shall be attached to cabinet at side with a full-length 3/16" Dia. [Ø4,8] stainless steel multi-staked piano hinge and shall be held closed with tumbler locks keyed alike to other ASI washroom equipment. Waste container shall have hemmed edges for safety and shall be retained by a tumbler lock keyed alike. Face trim shall be 1" [25] wide formed from one piece with no miters, welding or open seams and have 1/4" [6] square return to wall. Structural assembly of all components shall be of welded construction. Cabinet shall have no exposed fastening devices or spot -welded seams.
