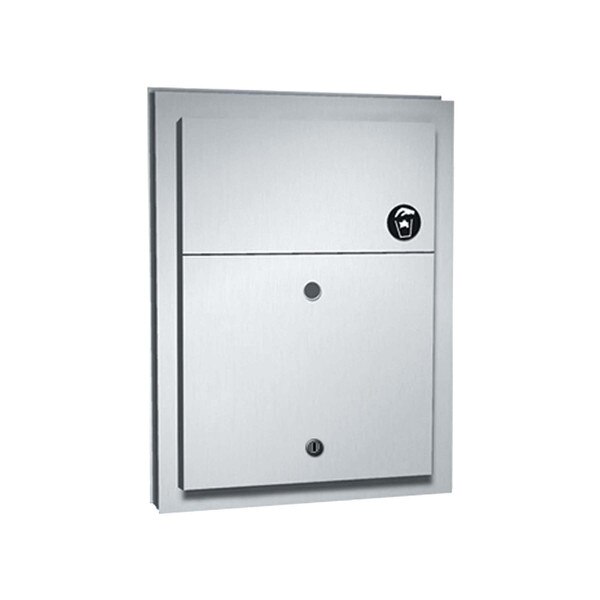

ASI 10-0472-1 Partition Mounted, Dual Access, Locking Sanitary Napkin Disposal, 1.5 Gallon
Unit serves two compartments mounted in partitions. Receptacle removable from one side for servicing. Self-closing doors on each side are mounted to cabinet with heavy-duty full length piano hinge. Holds 1.5 gal (5.7 L) of dry/solids waste.
Includes tumbler lock.
| Mount: | Partition, Double Sided |
| Primary Material: | Stainless Steel |
| Capacity: | 1.5 Gal. |
| Lid or Cover: | Yes, swing-in-doors |
| Locks: | Yes |
| Overall Dimensions: | 13" Wide x 17-1/4" Tall x 4" Deep Accomodates partition 1/2 to 3" in thickness |
| Rough-In: | 11-3/8" Wide x 15-5/8" Tall (through partition) |
| Net Weight: | 10 lbs. |
| Shipping Dimensions: | 19" Length x 15" Width x 6" Height |
| Shipping Weight: | 10.3 lbs. |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
Architectural Specifications:
Partition Mounted Dual Access Sanitary Napkin Disposal with locking receptacle shall hold 1.5 gal (5.7 L) of dry/solids waste. Doors, flanges, waste receptacle and cabinet shall be 22 gauge type 304 stainless steel alloy 18-8. All exposed surfaces shall be satin finish and be protected during shipment with PVC film easily removable after installation. Doors shall operate independently and shall be attached to cabinet with a full-length 3/16" diameter (Ø4.8) stainless steel multi-staked piano hinge and shall be spring loaded to hold in closed position. International graphic symbol for waste disposal label shall be adhered to doors. Structural assembly of body and door components shall be of welded construction. Face trim mounting flanges shall be of one piece construction 1" (25) wide with no welded miters and shall have square 1/4" (6) returns with an adjustability range for partition thickness of 1/2" (13) to 3" (76). Waste container shall have hemmed edges for safety and shall be retained by a tumbler lock keyed alike to other ASI washroom equipment and shall have a fully hemmed finger-grip for safety and service removal from one side only.
