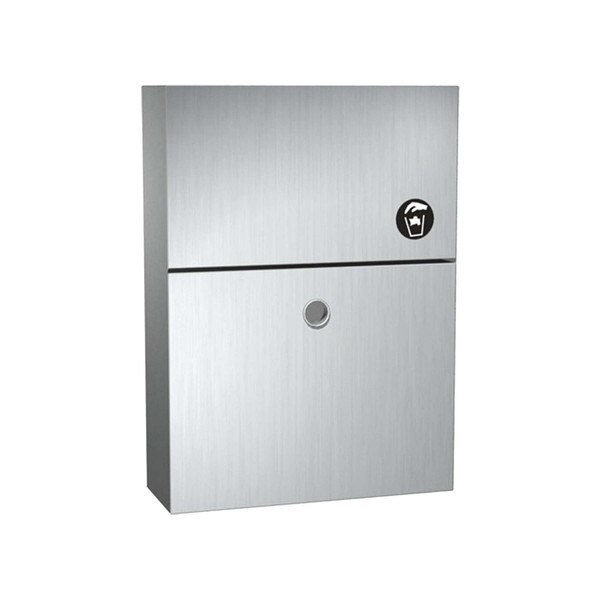

ASI 10-0473-A Surface Mount, Sanitary Napkin Disposal, 1.5 Gal., Stainless Steel
Self-closing door is mounted to cabinet with stainless steel spring hinge. Holds 1.5 gal (5.7liters) of dry/solids waste.
Surface mounted unit for end stall installation.
User pushes door to deposit waste material. Door is self-closing. Maintenance schedule determines waste removal cycle. Unit is emptied by removing bottom waste container and inverting over collection bag. Waste container is captured by internal angle to prevent inadvertent dumping and safety-edged finger grip provides convenient grip for service.
| Mount: | Wall / Surface |
| Primary Material: | Stainless Steel |
| Capacity: | 1.5 Gal. |
| Lid or Cover: | Yes, swing-in door |
| Locks: | No |
| Overall Dimensions: | 11" Wide x 15-1/4" Tall x 4" Deep |
| Net Weight: | 7.7 lbs. |
| Shipping Dimensions: | 17" Length x 13" Wide x 6" Deep |
| Shipping Weight: | 7.9 lbs. |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | Unit is emptied by removing bottom waste container and inverting over collection bag. Waste container is captured by internal angle to prevent inadvertent dumping. Mounting fasteners not included. |
Architectural Specifications:
Surface Mounted End Stall Sanitary Napkin Disposal shall hold 1.5gal (5.7liters) of dry/solids waste and shall have door and cabinet fabricated of alloy 18-8 stainless steel, type 304, 22 gauge; all exposed surfaces shall have No 4 satin finish and be protected during shipment by a PVC film. Door shall be attached to cabinet with a full length 3/16" dia. (5mm) stainless steel multi-staked piano hinge and shall be spring loaded to hold in closed position. Structural assembly of body and door components shall be of welded construction and cabinet shall have no exposed fastening devices or visible spot welded seams. Removable waste container shall be captured internally by full width Ζ- retainer and shall have a safety-edged finger grip.
