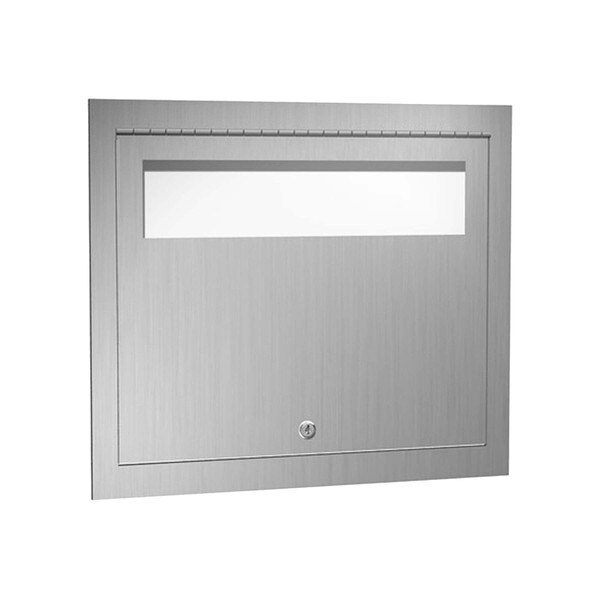

ASI 10-0477 Recessed, Toilet Seat Cover Dispenser, Stainless Steel, 500 pc. Capacity
Dispenses 500 standard single or half-fold paper toilet seat covers contained in supply box. Stainless steel multi-staked piano hinge door includes tumbler lock.
| Cover Material: | Stainless Steel |
| Mount: | Wall / Recessed |
| Dispensed Items: | Toilet Seat Cover |
| Capacity: | 500 single fold or half fold covers |
| Locks: | Yes |
| Overall Dimensions: | 17-1/4" Wide x 12-3/4" Tall x 2-19/32" Deep (Projects 1/4" out from wall.) |
| Rough-In: | 15-3/4" Wide x 11-1/4" Tall x 2-5/8" Deep |
| Net Weight: | 4.7 lbs. |
| Shipping Dimensions: | 20" Length x 15" Width x 4" Height |
| Shipping Weight: | 5 lbs. |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | Covers are self-feeding until supply is depleted. Unit is manually reloaded with a full box through access door. |
Architectural Specifications:
Recessed Toilet Seat Cover Dispenser shall hold and dispense 500 standard single or half-fold paper toilet seat covers contained in supply box and shall have cabinet, frame and door of 22 gage type 304 stainless steel alloy 18-8; all exposed surfaces shall have satin finish protected during shipment with a PVC film easily removable after installation. Face trim frame shall be one piece construction 1" [25] wide with no welded miters and shall have a 1/4" [6] return to wall. Cover dispensing slot shall have a fully deburred flat edge for snag-free dispensing and user safety. Door shall be attached to face frame with a full-length, heavy-duty 3/16" Dia. [Ø4,8] stainless steel multi-staked piano hinge and shall be held closed with a tumbler lock keyed alike to other ASI washroom equipment. Structural assembly of cabinet and door components shall be of welded construction and shall have no exposed fasteners or welded seams.
