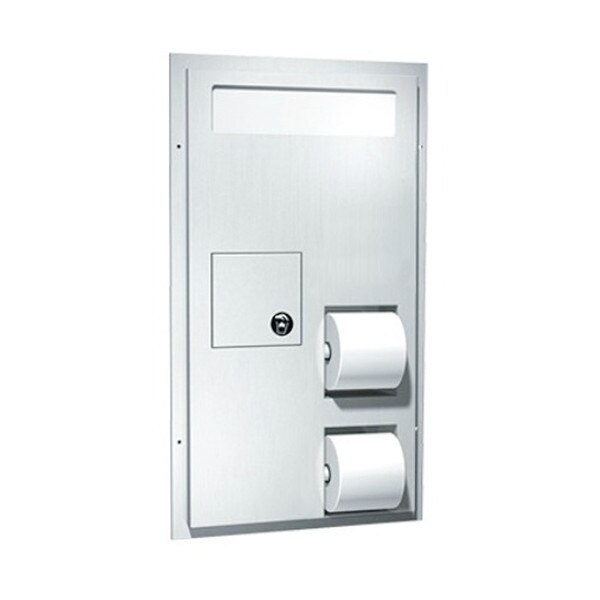

ASI 10-0481-HCR Part. Mounted, Dual Acc., Toilet St Cover, TP Holder & Napk. Disp, 1 Sd ADA (Rev)
Toilet tissue and receptacle on opposite sides of 0481-HC.
One side mounts flush on barrier-free compartment side to allow grab bar clearance. Usable by both sides but serviced from one side. Access door shall be opposite HC stall.
Holds 1000 seat covers and 4 rolls of standard or 1800 sheet 4-1/2″ x 5-1/4″ diameter (114 x Ø133) toilet paper. Removable waste container has a waste capacity of 1.3 gal (4.9 liters).
Cabinet door is held closed with two (2) tumbler locks. Cabinet also includes theft and vandal resistant rollers molded of high-impact resistant plastic with integral molded-in stainless steel endpins and four (4) rollers [p/n R-004] are supplied.
| Cover Material: | 18 Gauge Type 304 Stainless Steel Alloy 18-8 |
| Mount: | Partition / Two Sided |
| Dispensed Items: | Disposable Toilet Seat | Toilet Paper |
| Capacity: | 1000 Seat Covers | 4 Rolls Toilet Tissue (Standard Size) |
| Waste Bin Capacity: | 1.3 Gal. |
| Locks: | Yes, two. |
| Overall Dimensions: | 17-3/8" Wide x 30-5/8" Tall x 4-1/4" Deep (Add thickness of partition to get full installed width. |
| Rough-In: | 15-1/2" Wide x 28-7/8" Tall (Accomodates partitions from 1/2" to 3-3/4" thick) |
| Net Weight: | 21.3 lbs. |
| Shipping Dimensions: | 34" Length x 20" Width x 6" Height |
| Shipping Weight: | 23.7 lbs. |
| Comments: | Sanitary waste receptacle is removeable. Theft and vandal resistant toilet paper spindles. |
Architectural Specifications:
Partition Mounted Dual Access Seat Cover & Toilet Paper Dispenser with Sanitary Napkin Disposal for Barrier Free Access shall hold and dispense 1000 standard single or half-fold paper toilet seat covers contained in supply box and four (4) standard or 1800 sheet 4-1/2" x 5-1/4" diameter (114 x Ø133) toilet paper rolls, and shall have a waste capacity of 1.3 gal (4.9 liters) or 300 in3 (.005 m3 ). Seat dispenser, waste disposal door and toilet paper dispenser door shall be 18 gauge type 304 stainless steel alloy 18-8. Face frame and cabinet shall be 22 gauge. All exposed surfaces shall have satin finish protected during shipment with PVC plastic film easily removed after installation. Face trim mounting flanges shall be of one piece construction 1" (25) wide with no welded miters and shall have square 1/4" (6) returns with an adjustability range for partition thickness of 1/2" to 3-3/4" (13 to 95). Flange on HC panel side of unit shall be flush with face of unit to permit flush mounting behind grab bar. Access door shall be opposite HC stall. Seat cover dispensing slot shall have fully deburred flat edges for snag-free dispensing and user safety. Internal baffles shall prevent line of sight view from either side through unit at any time. Service door shall be attached to cabinet with a full-length, heavy-duty 3/16" diameter (Ø5) stainless steel multi-staked piano hinge and shall be held closed with two (2) tumbler locks keyed alike to other ASI washroom equipment. Disposal doors shall be hung on cabinet with stainless steel spring hinges and have the international waste disposal symbol on face. Tamper resistant waste container shall be fabricated of heavy-duty stainless steel. Cabinet shall include theft and vandal resistant rollers that shall be of molded high-impact resistant plastic with integral molded-in stainless steel endpins and four (4) rollers [p/n R-004] shall be supplied. Structural assembly of cabinet and door components shall be of welded construction and shall have no exposed fasteners.
