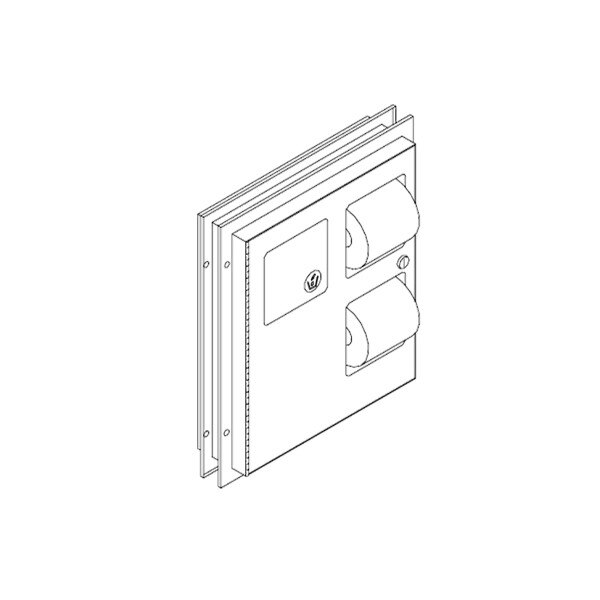

ASI 10-04813 Partition Mounted, Dual Access, TP Dispenser & San. Napkin Disposal
Mounts through partition, usable by both sides but serviced from one side. Holds 4 rolls of standard or 1800 sheet 4-1/2″ x 5-1/4″ diameter (114 x Ø133) toilet paper. Removable waste container has a waste capacity of 1.3 gal (4.9 liters).
Cabinet door is held closed with two (2) tumbler locks. Cabinet also includes theft and vandal resistant rollers molded of high-impact resistant plastic with integral molded-in stainless steel endpins and four (4) rollers [p/n R-004] are supplied.
| Cover Material: | Stainless Steel |
| Mount: | Partition / Two Sided |
| Dispensed Items: | Toilet Paper |
| Capacity: | 4 standard rolls (two per side) up to 5-1/4" diameter (1800 sheets) |
| Waste Bin Capacity: | 1.3 Gal. |
| Locks: | Yes |

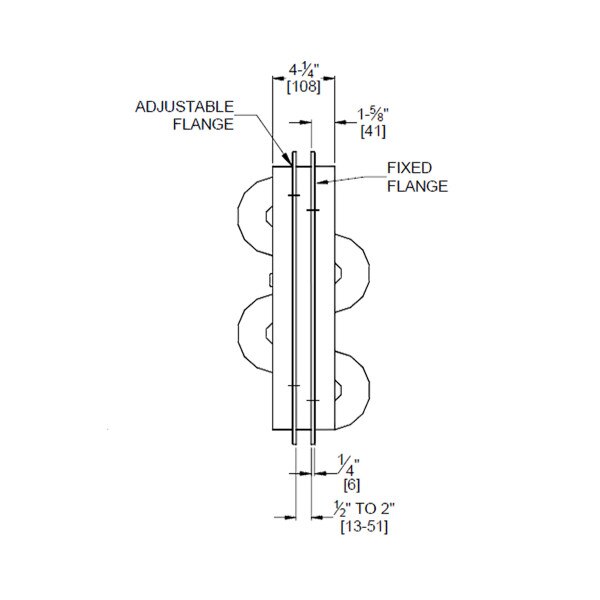

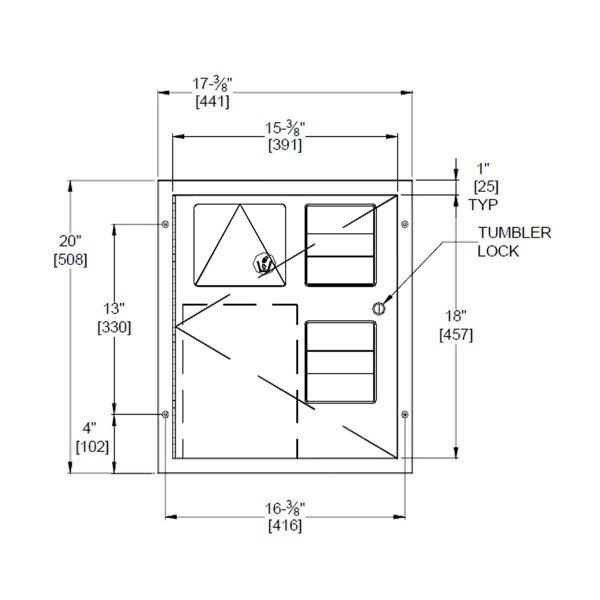

| Overall Dimensions: | 17-3/8" Wide x 20" Tall x 4-1/4" Deep (Accomodates partitions 1/2" to 2" thick) |

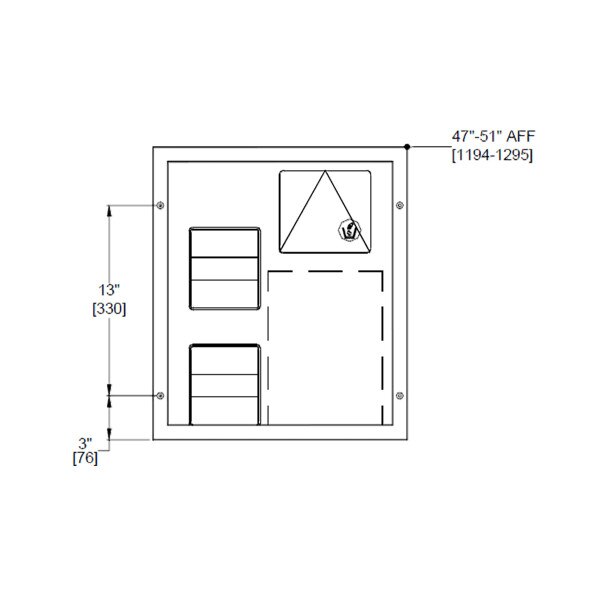

| Rough-In: | 15-1/2" Wide x 18-1/4" Tall |
| Net Weight: | 14.7 lbs. |
| Shipping Dimensions: | 24" Length x 21-3/8" Wide x 6" Deep |
| Shipping Weight: | 16.7 lbs. |
| UPC / GTIN: | Not published |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | Toilet paper rolls feed freely until depleted and level of supply is constantly visible for low-level warning. Waste bin is emptied manually on cycle determined by maintenance needs. Toilet paper rolls and waste receptacle are serviced from one side, for both stalls, by unlocking and opening door. |
Architectural Specifications:
Partition Mounted Dual Access Toilet Paper Dispenser and Sanitary Disposal shall hold and dispense four rolls standard or 1800 sheet 4- 1/2" x 5-1/4" diameter (114 x Ø133) toilet paper. Removable waste container shall have a waste capacity of 1.3 gal (4.9 liters) or 300 in3 (.005 m3 ). Waste disposal door and toilet paper dispenser door shall be 18 gauge type 304 stainless steel alloy 18-8. Face frame and cabinet shall be 22 gauge. All exposed surfaces shall have satin finish and be protected by PVC film easily removed after installation. Disposal doors shall be hung on spring-tensioned hinges and shall have international graphic waste disposal symbols. Service door shall be attached to cabinet at side with a full-length 3/16" diameter (Ø5) stainless steel multi-staked piano hinge and shall be held closed with a tumbler lock keyed alike to other ASI washroom equipment. Face trims shall be 1" (25) wide formed from one piece with no miters, welding or open seams and have 1/4" (6) square returns to face of partition. Structural assembly of all components shall be of welded construction. Internal baffles shall prevent line of sight view from either side through unit at any time. Cabinet shall include theft and vandal resistant rollers that shall be of molded high impact resistant plastic with integral molded-in stainless steel endpins and four (4) rollers [p/n R-004] shall be supplied.
