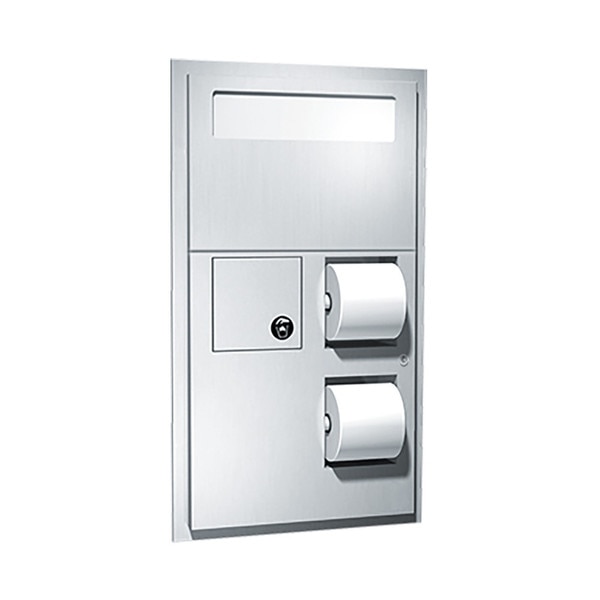

ASI 10-0482 Recessed Toilet Seat Cover Dispenser & Toilet Paper Holders, Stainless Steel
Holds and dispenses 1000 paper seat covers and two (2) rolls standard or 1800 sheet 4-1/2″ x 5-1/4″ diameter (114 x Ø133) toilet paper. Removable waste container has a capacity of 1.3 gal (4.9 liters) or 300 in3 (.005 m3 ).
Cabinet door is held closed with tumbler lock. Cabinet also includes theft and vandal resistant rollers molded of high-impact resistant plastic with integral molded-in stainless steel endpins and two (2) rollers [p/n R-004] are supplied.
| Cover Material: | 18 Gauge Type 304 Stainless Steel Alloy 18-8 |
| Mount: | Wall / Recessed |
| Dispensed Items: | Disposable Toilet Seat Cover | Toilet Paper |
| Capacity: | 1000 Seat Covers | 2 Rolls Toilet Tissue (Standard Size) |
| Waste Bin Capacity: | 1.3 Gal. |
| Locks: | Yes, one tumbler |
| Overall Dimensions: | 17-3/8" Wide x 30-5/8" Tall x 4-1/4" Deep (Add thickness of partition to get full installed width. |
| Rough-In: | 15-3/4" Wide x 29" Tall x 4" Deep |
| Net Weight: | 13 lbs. |
| Shipping Dimensions: | 34" Length x 20" Width x 6" Height |
| Shipping Weight: | 16 lbs. |
| Comments: | Sanitary waste receptacle is removeable. Theft and vandal resistant toilet paper spindles. |
Architectural Specifications:
Recessed Seat Cover and Toilet Paper Dispenser with Sanitary Napkin Disposal shall hold and dispense 1000 paper seat covers and two rolls standard or 1800 sheet 4-1/2" x 5-1/4" diameter (114 x Ø133) toilet paper. Removable waste container shall have a capacity of 1.3 gal (4.9 liters) or 300 in3 (.005 m3 ). Seat cover dispenser panel and toilet paper dispenser door shall be fabricated of 18 gauge type 304 stainless steel alloy 18-8. Face frame and cabinet shall be 22 gauge. All exposed surfaces shall have No 4 satin finish and be protected by PVC film easily removed after installation. Seat cover cutout shall have a fully deburred edge for snag-free dispensing and user safety. Disposal door shall be hung on spring-tensioned hinges and shall have international graphic waste disposal symbol. Toilet paper dispenser/disposal door shall be attached to cabinet at side with a full-length 3/16" diameter (Ø5) stainless steel multistaked piano hinge and shall be held closed with a tumbler lock keyed alike to other ASI washroom equipment. Face trim shall be 1" (25) wide formed from one piece with no mitres, welding or open seams and have 1/4" (6) square return to face of wall. Structural assembly of all components shall be of welded construction. Cabinet shall include theft and vandal resistant rollers that shall be of molded high-impact resistant plastic with integral molded-in stainless steel endpins and two (2) rollers [p/n R-004] shall be supplied.
