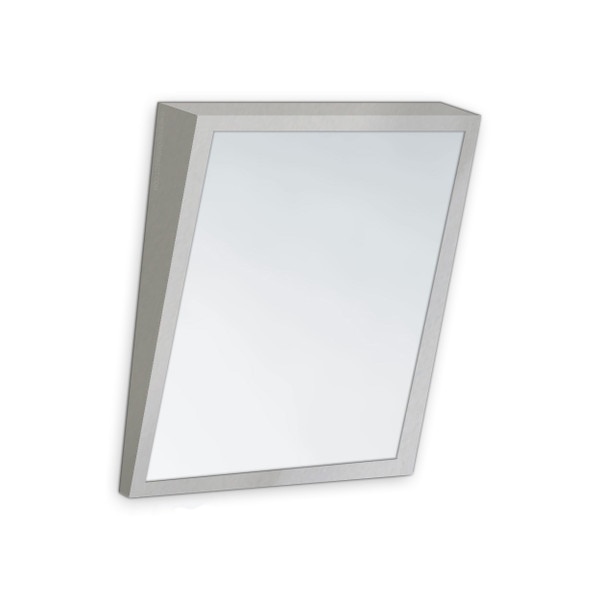

ASI 10-0535-1824 Mirror, Fixed Tilt, Stainless Steel Frame, 18" W x 24" T ( 4"D@Top, 1" D@Bot)
 | Top extends 4" away from the wall and gradually decreases down to 1" out at the bottom. |
Offers visibility for wheelchair patients. Frame fabricated of 20 gauge stainless steel with a satin finish. Mirror is tapered from 4″ (102 mm) at top to 1″ (25 mm) at bottom.
0535-1824 – 18” wide x 24” high (457 x 610 mm)
Measurement Diagram:
| Brand: | ASI |
| Manufacturer Model No.: | 10-0535-1824 |
| Mount: | Fixed Tilt |
| Frame Material: | Satin Stainless Steel |
| Frame Type: | Angle Frame (Mitred Corners) |
| Glazing: | 1/4" Plate Glass |
| Overall Dimensions: | 18" Wide x 24" Tall 4" Deep at Top, 1" Deep at Bottom |
| Shipping Dimensions: | 28" Length x 22" Width x 6" Height |
| Shipping Weight: | 17.1 lbs. |
| UPC / GTIN: | Not Published |
| Country of Manufacture: | USA |
| Warranty: | 15 Yr. Against Silver Spoilage |
Architectural Specifications:
Fixed Angle Tilted Mirror shall be fabricated of alloy 18-8 stainless steel, type 304, 20 gauge. Face shall be one piece construction free of miters or spot welded seams. All exposed surfaces shall have No 4 satin finish and be protected during shipment by plastic PVC film easily removable after installation. Concealed tamper resistant locking devices shall be provided. Mirror shall be _______(INSERT GLAZING OPTION) and shall be warranted for 15 years against silver spoilage. Mirrors shall be supplied as standard with glazing option ‘ A ´. For a complete description and other choices of glazing options, see the Mirror Glazing OPTIONS Chart.
