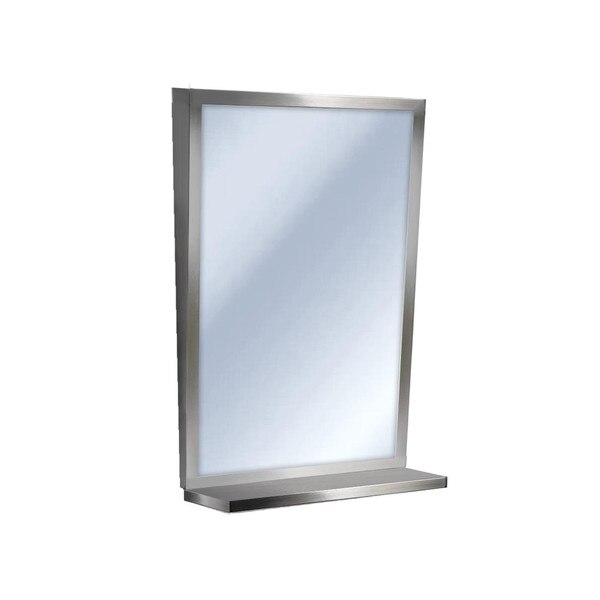

ASI 10-0537-1830 Fixed Tilt Mirror with Shelf, Plate Glass
Stainless steel fixed tilt mirror with shelf for ADA (wheelchair accessibility). Mirror projects 4" out at top, 1" at bottom. Shelf projects 6".
Keyhole mounting. Fasteners (screws) not included.
- Frame made from type 304, alloy 18-8, 20 gauge stainless steel with brushed (satin) finish.
- Surface mounted.
- Frame face is one piece construction free of miters or spot welded seams.
- Top quality plate glass mirror with 15 yr. warranty against spoilage.
- Back is cushioned with expanded polyethylene microcell foam sheet for shock protection.
Measurement Diagram:
| Brand: | ASI (American Specialties) |
| Manufacturer Part No.: | 10-0537-1830 |
| Mount: | Wall / Surface |
| Frame Material: | Type 304, alloy 18-8, 20 gauge |
| Frame Type: | Fixed Tilt (4" at top, 1" at bottom) |
| Glazing: | Plate Glass Mirror |
| Overall Dimensions: | 18" Wide x 30" Tall x 6" Deep |
| Shelf Area: | 6" Deep x 16" Wide |
| Shipping Dimensions: | 34" Length x 23" Width x 8" Height |
| Shipping Weight: | 23.2 lbs. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | USA |
| Warranty: | 15 Yr. Against Silver Spoilage |
