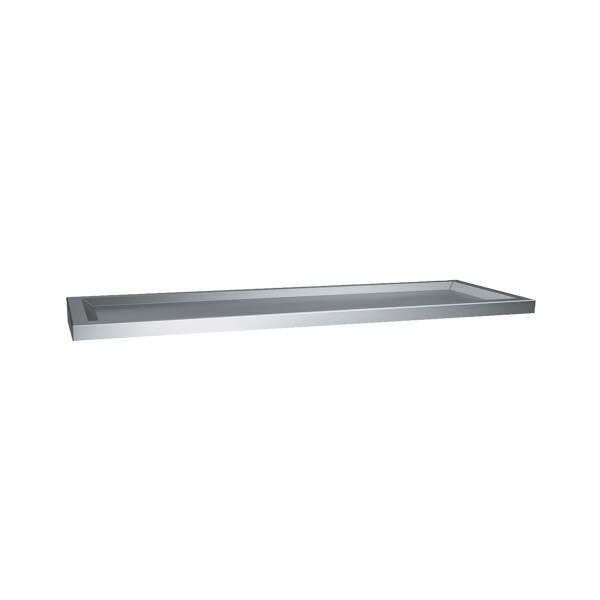

ASI 10-0690-24 Stainless Steel Shelf w/Raised Edges, 6" D x 24" W
Entire unit is formed of one piece of 18 gauge stainless steel having a 3/8″ depression with a #4 satin finish. See chart for standard sizes.
0690-24 – 24″ length x 6″ depth (610 x 152 mm)
| Primary Material: | Stainless Steel |
| Mount: | Wall / Surface, Exposed |
| Capacity: | Not published |
| Overall Dimensions: | 24" Wide x 1-5/16" Tall x 6-1/8" Deep |
| Net Weight: | 2.4 lbs. |
| Shipping Dimensions: | 25" Length x 7" Width x 4" Height |
| Shipping Weight: | 2.8 lbs. |
| UPC / GTIN: | Not published |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | Mounting fasteners not included. |
Architectural Specifications:
Surface Mounted Shelf shall be fabricated of alloy 18-8 stainless steel, type 304 and shall be 18 gauge. Shelf shall have a 5/8′′ (16mm) lip on front with an extra return for rigidity and safety. Sides of shelf shall be closed and tapered from front to rear. Rear of shelf shall have a turned down leg with mounting holes. Shelf shall have a 3/8′′ (10mm) depression in top surface inside perimeter rim. All edges shall be de-burred. All exposed surfaces shall be No 4 satin finish and shall be protected during shipment with a PVC film easily removable after installation.
