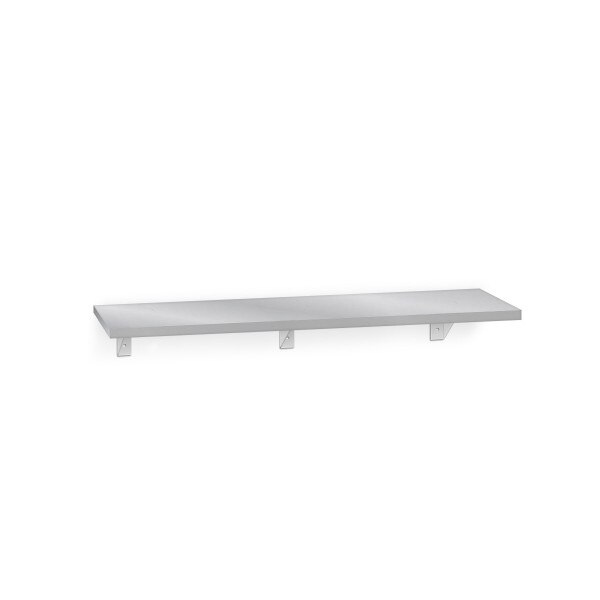

ASI 10-0692-836 Stainless Steel Shelf, 18 Gauge, Satin Finish, 8" D x 36" W
Fabricated of 18 gauge stainless steel with a satin finish. Front edge is hemmed for maximum rigidity and safety. See chart for standard sizes.
0692-836 – 8” deep x 36” long (203 x 914 mm)

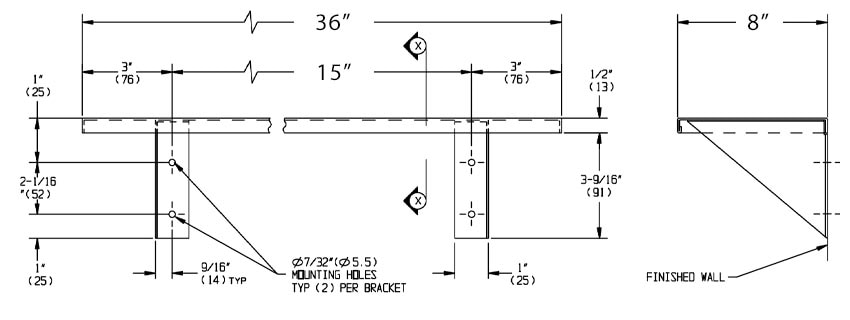

Measurement Diagram:
Alternatives:
To see all of the products in this family, click HERE.
| Primary Material: | Stainless Steel |
| Finish / Color: | Satin |
| Installation Type: | Wall / Surface |
| Construction: | 18 Gauge Stainless Steel Front edge hemmed for extra rigidity |
| Mount Type: | Keyhole |
| Hardware Included: | No |
| Overall Dimensions: | 36" Wide x 8" Deep x 4-1/16" Tall |
| Net Weight: | 6.2 lbs. |
| Shipping Dimensions: | 36-1/2" Wide x 8-1/2" Deep x 4-3/4" Tall |
| Shipping Weight: | 6.7 lbs. |
| Warranty: | 1 Yr. Manufacturer's Limited |
| Manufacturer Part No.: | 10-0692-836 |
Architectural Specifications:
Surface Mounted Shelf shall be fabricated of alloy 18-8 stainless steel, type 304. Brackets shall be 16 gauge and shelf shall be 18 gauge, with a 1/2" (13) lip on all four (4) sides. Front lip shall be hemmed under for safety. All exposed surfaces shall be No 4 satin finish and shall be protected during shipment with PVC film easily removable after installation. Structural assembly of shelf and bracket supports shall be of welded construction. Shelf shall be sized and brackets located as per standard schedule or shall be custom fabricated to customer supplied drawing. Scheduled shelves equal to or less than 8" (203) deep shall have standard 4" (102) high brackets and shelves in the depth range greater than 8" (203) to 12" (305) shall have 6" (152) high brackets. Consult factory for shelves deeper than 12" (305).
