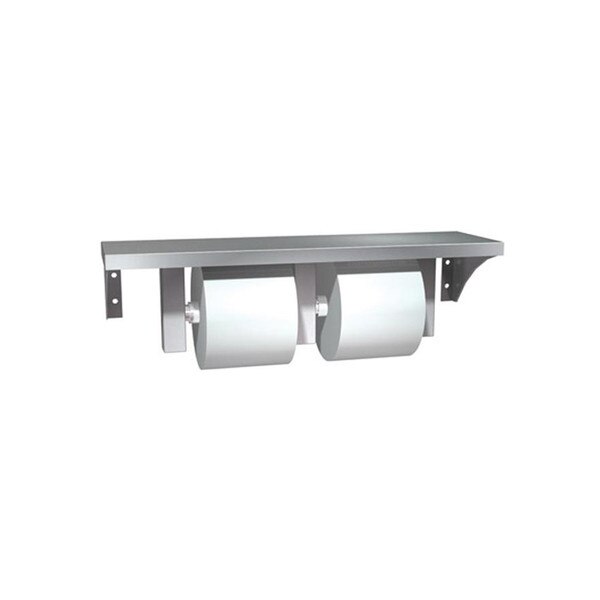

ASI 10-0697-GAL Stainless Steel Shelf with Toilet Tissue Holder, 2 Roll
Holds two (2) 5′′ (127mm) dia. rolls of 1500 sheets or standard toilet paper rolls and includes a 5″ x 18″ (127mm x 457mm) stainless steel shelf with 5/8″ (16 mm) hemmed lip on front edge. Rollers molded of high impact-resistant polystyrene plastic and two (2) are supplied.
Toilet paper rolls are self-feeding on user-pull demand until supply is depleted. Rollers are spring loaded and are free-rolling.
| Type: | Standard 2 roll (Side-by-Side) |
| Mount: | Wall / Surface, Exposed |
| Primary Material: | Stainless Steel |
| Capacity: | 2 Standard Toilet Paper Rolls (4-1/1" W x Up to 5" Dia.) |
| Locks: | No |
| Overall Dimensions: | 18" Wide x 4-3/16" Tall x 5" Deep |
| Shelf Dimensions: | 18" Wide x 5" Deep |
| Net Weight: | 3.8 lbs. |
| Shipping Dimensions: | 19" Length x 6" Width x 5" Height |
| Shipping Weight: | 4 lbs. |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | Mounting fasteners not included. |
Architectural Specifications:
Surface Mounted Shelf & Dual Toilet Paper Holder shall hold two (2) 5" Dia [127] rolls of 1500 sheets or standard toilet paper rolls and shall have 5" [127] x 18" [457] shelf with 5/8" [16] hemmed lip on front edge. All metal parts shall be 18 gage [1,3] 304 stainless steel alloy 18-8. All exposed surfaces shall have satin finish and shall be protected during shipping by a PVC film easily removed after installation. Structural assembly of shelf and brackets/roll supports shall be of welded construction. Rollers (p/n R-003) shall be molded of high impact-resistant polystyrene plastic and two (2) shall be supplied.
