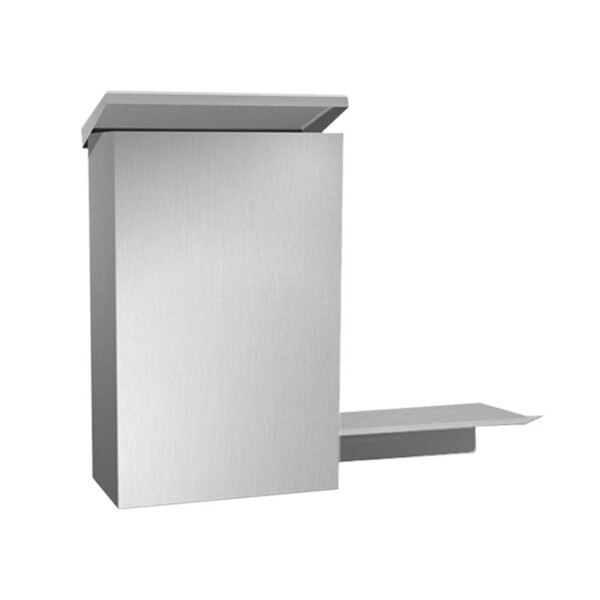

ASI 10-0852-SH Wall/Surface Mount, Stainless Steel, Sanitary Napkin Disposal w/Shelf & Hinged Lid
Unit equipped with top cover door and cabinet. Waste capacity of 1.2 gal (4.5L). Removable purse shelf matches cabinet finish.
User lifts lid to deposit waste material. Unit is emptied by top door and removing wax paper collection bag. Waxed paper liner bags are furnished by janitorial personnel.
| Mount: | Wall / Surface, Exposed |
| Primary Material: | Stainless Steel |
| Capacity: | 1.2 Gal. |
| Lid or Cover: | Yes, swing-up door |
| Locks: | No |
| Overall Dimensions: | 15" Wide x 9-11/16" Tall x 4" Deep |
| Shelf Dimensions: | 7-1/2" Wide x 4" Deep |
| Net Weight: | 3.1 lbs. |
| Shipping Dimensions: | 12" Length x 9" Width x 5" Height |
| Shipping Weight: | 3.3 lbs. |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | Unit is surface mounted on wall or partition using No 10 self tapping screws (by others) . Two (2) mounting holes through back are “keyhole” slots for ease in hanging unit on pre-installed screws. Shelf is mounted to wall or partition with three (3) No 10 self tapping screws (by others). |
Architectural Specifications:
Surface Mounted Sanitary Napkin Disposal with Shelf shall have door and cabinet fabricated of alloy 18-8 stainless steel, type 304, 22 gauge. All exposed surfaces shall be No 4 satin finish and be protected during shipment with a PVC film easily removable after installation. Top cover door shall be attached to cabinet with a full length 3/16" dia. stainless steel multi-staked piano hinge. Removable purse shelf shall be fabricated of 16 gauge same grade stainless steel with a No 4 satin finish to match cabinet.
