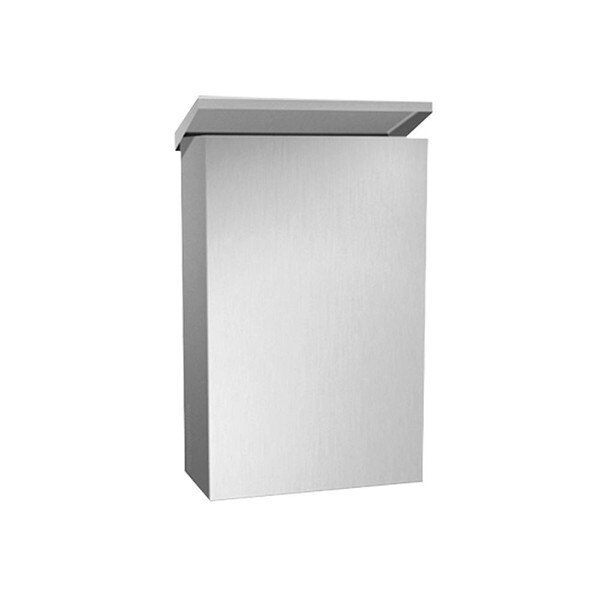

ASI 10-0852 Wall/Surface Mount, Stainless Steel, Sanitary Napkin Disposal w/Hinged Lid, Satin
Napkin disposal equipped with top cover door and cabinet. Waste capacity of 1.2 gal (4.5L).
User lifts lid to deposit waste material. Emptied by opening top door and removing wax paper collection bag. Waxed paper liner bags are furnished by others.
| Mount: | Wall / Surface, Concealed |
| Primary Material: | Stainless Steel |
| Capacity: | 1.2 Gal. |
| Lid or Cover: | Yes, swing-up door |
| Locks: | No |
| Overall Dimensions: | 7-7/8" Wide x 9-11/16" Tall x 4" Deep |
| Net Weight: | 2.3 lbs. |
| Shipping Dimensions: | 12" Length x 9" Width x 5" Height |
| Shipping Weight: | 2.6 lbs. |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | Unit is emptied by opening top door and removing wax paper collection bag. Waxed paper liner bags are furnished by others. |
Architectural Specifications:
Surface Mounted Sanitary Napkin Disposal shall have top cover door and cabinet of 22 gage type 304 stainless steel alloy 18-8. All exposed surfaces shall be satin finish (or Powder Coated (PC) Matte Black finish if suffix -41 is added to Model №) and be protected during shipment with PVC film easily removable after installation. Capacity shall be 1.2 gal (4.5L). Top cover is attached to cabinet with a full length 3/16" Dia [Ø4,8] stainless steel multi-staked piano hinge. Structural assembly of body and door components shall be of welded construction.
