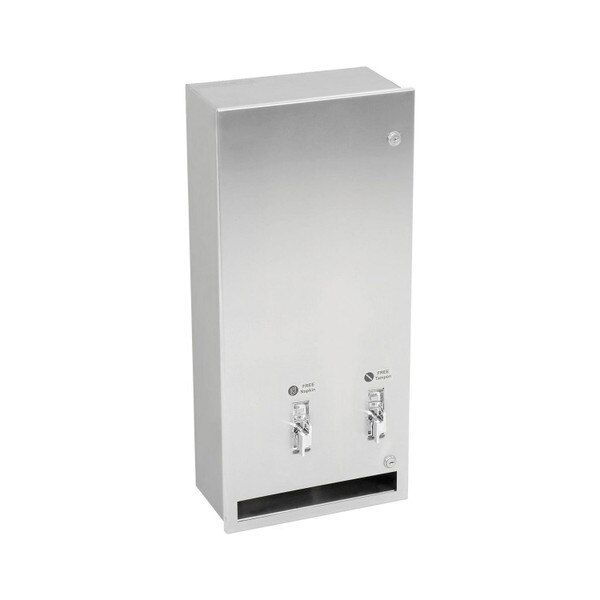

ASI 10-0864-F Wall/Surface Mount Sanitary Napkin & Tampon Dispenser, Free Operation (27T/30N)
Surface mounted dispenser includes two dispensing mechanisms, one for 27 tampons, the other for 30 feminine napkins.
Furnished with an adjustable flange for recessing in wall depths from 1″ to 6″ (26 to 152 mm).
Allows Free (no coin) operation
| Cover Material: | 18 Gauge Type 304 Stainless Steel Alloy 18-8 |
| Mount: | Wall / Surface |
| Capacity: | 30 Sanitary Napkins | 27 Tampons of specified size |
| Operation: | Twist Knob |
| Denomination: | Free operation (no coin needed) |
| Locks: | Yes, three. Two for front cabinet and one (keyed differently) for coinbox. |
| Overall Dimensions: | 11-3/4" Wide x 26-1/8" Tall x 7" Deep |
| Net Weight: | 23.8 lbs. |
| Shipping DImensions: | 28" Length x 13" Width x 9" Height |
| Shipping Weight: | 26.8 lbs. |
| Comments: | Weights for each feed track shall be supplied (and must be used for proper dispensing. Buy American Act Compliant |
Architectural Specifications:
Surface Mounted Dual Sanitary Napkin & Tampon Dispenser shall hold 30 napkins and 27 tampons of specified sizes. Door shall be 18 gage type 304 stainless steel alloy 18-8. All exposed surfaces shall be satin finish (or Powder Coated (PC) Matte Black finish if suffix -41 is added to Model №) and be protected during shipment with PVC film easily removable after installation. Cabinet shall be 22 gage same grade stainless steel. Door shall be attached with a full length 3/16" Dia [Ø4,8] stainless steel multi-staked piano hinge and shall be held closed with two (2) tumbler locks keyed alike to other ASI washroom equipment. Internal coin-box shall be keyed differently than door locks. Dispensing mechanisms shall be fastener mounted internally to provide ability to change mechanisms for coinage denomination. Structural assembly of body and door components shall be of welded construction and have no exposed fasteners or welded seams. Weights for each feed track shall be supplied. Unit shall be compliant with 2010 ADA Accessibility Standards when installed in compliance with appropriate reach range and maintained according to manufacturer’s instructions (on this TDS and all product labeling), that operation may be accomplished with one hand, requires less than 5lbf (22.2 N) and does not require tight grasping, pinching, or any twisting of the wrist. Factory installed coin operation denomination shall be ______. (Please fill in 25¢ or 50¢; or FREE and add denomination as suffix to model № (e.g. 0864-25)).
