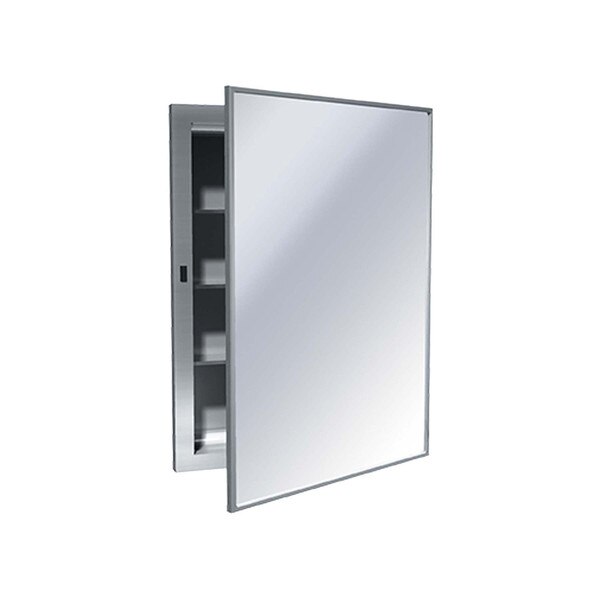

ASI 10-0952 Recessed Medicine Cabinet, Steel Frame & Cabinet, Plate Glass Mirror, 3 Adj. Shelves
Swing door mirror frame is type 304 stainless steel with satin finish. Mirror is 1/4″ (6 mm), guaranteed for 15 years against silver spoilage. Door has full length piano hinge and magnetic catch. Three removable stainless steel shelves.
User pulls door to access contents and manually pushes door shut. Adjust shelf spacing by removing shelves and reinserting in any of five (5) internally embossed tracks on each side of cabinet interior.
| Mirror Size: | 18-1/4 Wide x 24-1/4" Tall |
| Mount: | Wall / Recessed |
| Glass Type: | 1/4" Plate Glass |
| Shelves: | 3 Adjustable (5 mounting positions) |
| Hinge Type: | Stainless Steel Piano Hinge |
| Clasp Type: | Magnetic |
| Interior Depth: | 3" |
| Overall Dimensions: | 18-1/4" Wide x 24-1/4" Tall x 4-1/2" Deep |
| Rough-In: | 16" Wide x 22-3/4" Tall x 3-1/2" Deep |
| Net Weight: | 24.7 lbs. |
| Shipping Dimensions: | 28" Length x 22" Width x 6" Height |
| Shipping Weight: | 26.7 lbs. |
| Warranty: | 15 Years agains silver spoilage |
| UPC / GTIN: | Not Published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | Cabinet can be right-handed swing door or left-handed swing door determined by the installation. Pull the door to access contents and manually pushes door to engage magnetic catch that holds door shut. Shelf spacing may be adjusted to any of five (5) internally embossed tracks. |
Architectural Specifications:
Recess Mounted Medicine Cabinet with Mirrored Swing Door shall have channel frame door and cabinet fabricated of 22 gauge stainless steel type 304 alloy 18-8. Cabinet interior shall have radius corners and shall be provided with three (3) removable stainless steel shelves. Interior face trim shall be one-piece construction with no miters and no exposed fasteners or welded seams. Mirror glazing shall be No 1 quality 1/4" [6] thick polished float/plate glass and shall be warranted for fifteen (15) years against silver spoilage. Stainless steel door channel shall be hung on full length 3/16" diameter [Ø4,7] heavy duty stainless steel multi-staked piano hinge and shall be held closed by a magnetic. Cabinet shall have two (2) rubber door silencers. Cabinet can be right-handed swing door or left-handed swing door determined by the installation.
