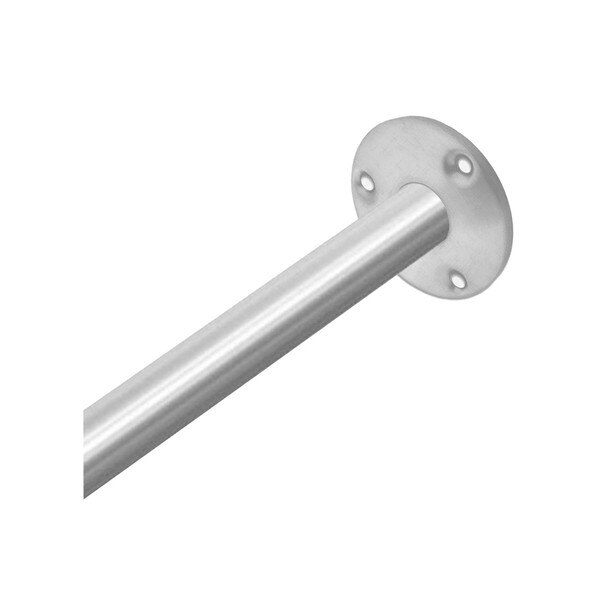

ASI 10-1214-48 Stainless Steel Shower Curtain Rod, Satin Finish, 1" O.D. Rod, 48" L
Flanges are fabricated of type 304 stainless steel alloy 18-8. Flanges have three (3) dimpled 17/64″ diameter (Ø6.7) holes to accept either Ø1/4 (M6) or № 10 (M5) oval head screws (provided by others).
Tubing is 1″ diameter (Ø25) x 20 gauge with a satin finish. Length will be as specified.
Rod is held captive by flanges when installed properly. Rod may rotate in flanges if turned by hand. Correctly installed rod and flanges will support specified shower curtain(s) hung on hooks 1200-SHU or others (by others). Rod will bend and pull from flanges if significant body weight is suspended.

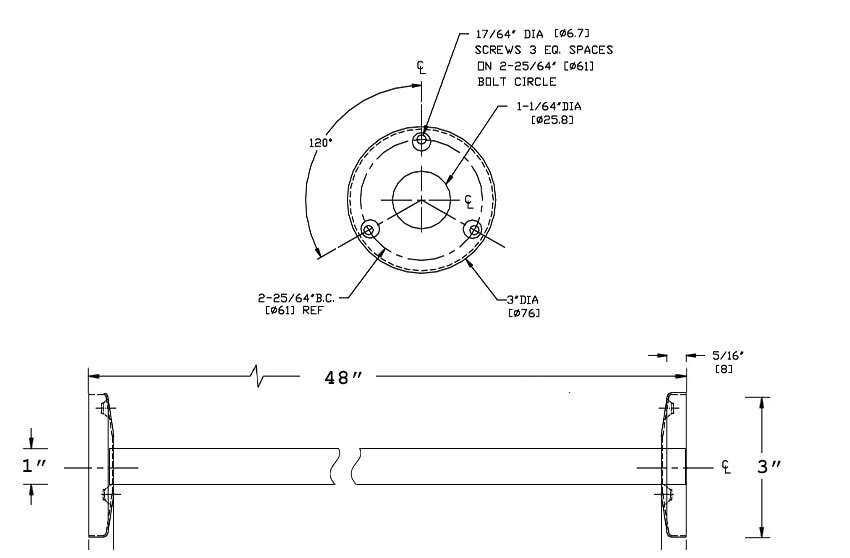

Measurement Diagram:
Alternatives:
To see all of the products in this family, click HERE.
| Primary Material: | Stainless Steel |
| Finish / Color: | Satin |
| Installation Type: | Wall / Surface |
| Mount: | Exposed |
| Outside Diameter of Rod: | 1" |
| Overall Dimensions: | 48" Wide x 3" Tall x 3" Deep |
| Net Weight: | 4.5 lbs. |
| Shipping Dimensions: | 50" Length x 4" Depth x 4" Height |
| Shipping Weight: | 5.5 lbs. |
| Warranty: | 1 Yr. Manufacturer's Limited |
| Manufacturer Part No.: | 10-1214-48 |
Architectural Specifications:
Heavy-Duty Shower Curtain Rod with flanges shall be fabricated of type 304 stainless steel alloy 18-8 and shall be protected during shipment with a plastic bag. Tubing shall be 1" diameter (Ø25) x 20 gauge with a satin finish and shall be protected during shipment with a plastic sleeve. Length shall be as specified. Flanges shall have three (3) dimpled 17/64" diameter (Ø6.7) holes to accept either Ø1/4 (M6) or № 10 (M5) oval head screws (provided by others).
