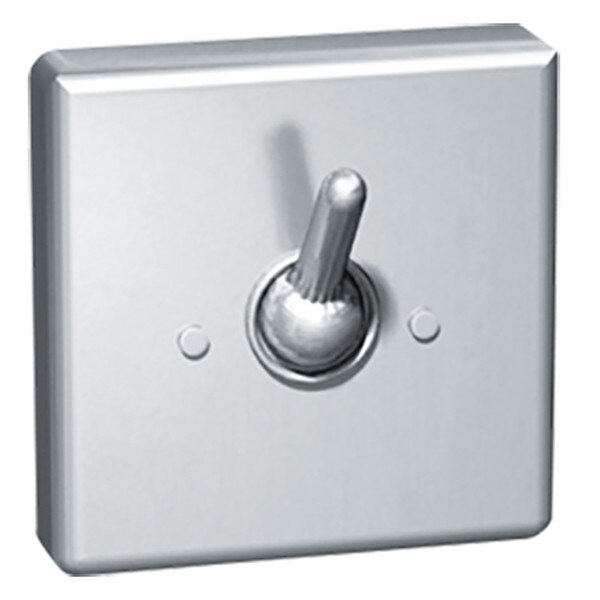

ASI 10-122 Clothes Hook, Square, Chase Mount
ASI 10-122 Fabricated of 12 gauge type 304 stainless steel with a satin finish. Back plate is fabricated of 14 gauge stainless steel. If hook is excessively loaded, it will snap down for safety. Square shape. Unit has four studs welded on back for rear mounting.
| Overall Dimensions:: | 4-1/4" Wide x 4-1/4" Tall x 1-1/2" Depth |
| Shipping Weight: | 1 lbs |
| Manufacturer Model No.: | 10-122 |
Architectural Specifications:
Rear Mounted Security Clothes Hook Shall be fabricated of type 304 stainless steel alloy 18-8. Hook shall be solid bar 3/8" diameter (Ø10) of one-piece construction with 1" diameter (Ø25) swivel trip-ball and wall plate shall be 14 gauge. Wall plate shall have four (4) welded-on rear mounted 1/4-20 internally-threaded posts that shall receive 1/4-20 threaded zinc-plated steel studs (supplied) of length specified to suit field conditions and shall include washers and nuts. Safety hook shall snap down when load exceeds 35 lb (16 kg) limit. Trip-ball socket housing shall prevent hook from being set in vertical-up position. All exposed surfaces shall have No 4 satin finish.
