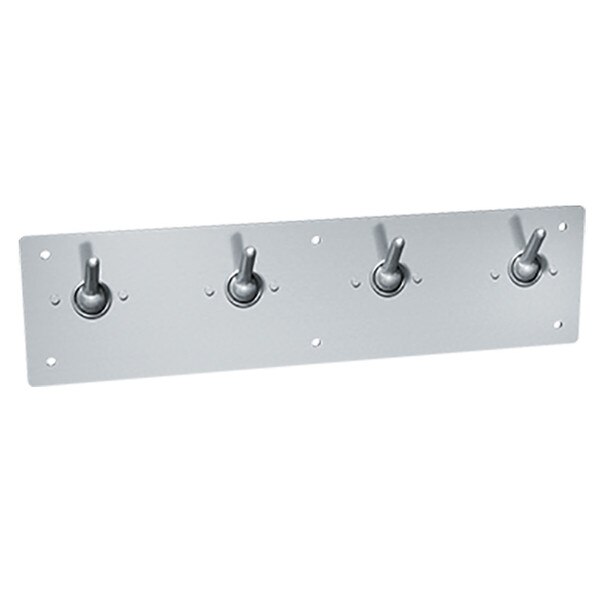

ASI 10-129 Safety Release Clothes Hook Strip, 4 Hooks, Stainless Steel, Exposed Mount, Satin Fin.
Fabricated of type 304 stainless steel alloy 18-8. Back plate is 14 gauge. Clothes hooks will be solid bar 3/8″ diameter (Ø10) of one-piece construction with 1″ diameter (Ø25) swivel trip-ball. Safety hooks snap down when load exceeds 35 lb (16 kg) limit. Trip-ball socket housing prevents hooks from being set in vertical-up position.
The unit is provided with six (6) clear mounting holes that shall accept 1/4″-20 x 2″ long (M6 x 51) stainless steel pin-Torx® button head machine screws (supplied).
| Primary Material: | Stainless Steel |
| Finish: | Brushed |
| Mount: | Wall / Surface, Exposed |
| Capacity: | Each hook: 35 lbs., Snap release (anti-ligature) |
| Overall Dimensions: | 18" Wide x 5-1/2" Tall x 2-1/4" Deep |
| Net Weight: | 4 lbs. |
| Shipping Dimensions: | 20" Length x 6" Width x 4" Height |
| Shipping Weight: | 4.3 lbs. |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | Includes mounting hardware, but not anchors. |
Architectural Specifications:
Security Safety Towel/Clothes Hooks Strip for surface mounting shall be fabricated of type 304 stainless steel alloy 18-8. Back plate shall be 14 gauge. Clothes hooks shall be solid bar 3/8" diameter (Ø10) of one-piece construction with 1" diameter (Ø25) swivel trip-ball. Safety hooks shall snap down when load exceeds 35 lb (16 kg) limit. Trip-ball socket housing shall prevent hooks from being set in vertical-up position. All exposed surfaces shall have No 4 satin finish. The unit is provided with six (6) clear mounting holes that shall accept 1/4"-20 x 2" long (M6 x 51) stainless steel pin-Torx® button head machine screws (supplied).
