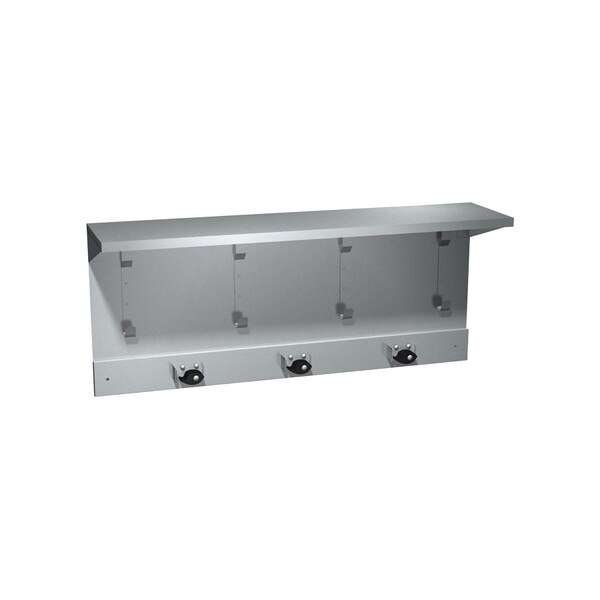

ASI 10-1308-3 Stainlesss Steel Utility Shelf, Hook & Mop Strip, 4 Hooks, 3 Holders, 34" L
Fabricated of type 304 satin finish stainless steel, this shelf is 8″ (203 mm) deep with 3/4″ (19 mm) return for rigidity. Mop holders are riveted to strip, and rubber cam is ribbed for grasping. Unit is 14-1/2″ (368 mm) high.
| Primary Material: | Stainless Steel |
| Finish: | Brushed |
| Mount: | Wall / Surface, Exposed |
| Capacity: | 3 Mop Holders, 4 Hooks |
| Overall Dimensions: | 34" Wide x 14-1/2" Tall x 8" Deep |
| Shelf Dimensions: | 34" Wide x 8" Deep |
| Net Weight: | 14.5 lbs. |
| Shipping Dimensions: | 36" Length x 15" Width x 9" Height |
| Shipping Weight: | 16.5 lbs. |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | Mounting fasteners not included. |
Architectural Specifications:
Shelf with Utility Hooks and Mop Strip shall have shelf and mop strip fabricated of 18 gauge type 304 stainless steel alloy 18-8. Utility hooks shall be fabricated of stainless steel 14 gauge. Shelf, utility hooks and mop strip shall have satin finish and be protected during shipment with PVC film easily removable after installation. Shelf, back and mop strip shall be one piece construction. Mop strip shall be raised 1/2" [13] from wall. Mop holders shall be fabricated of cadmium plated steel and shall be ribbed for rigidity. Pivoting, spring-loaded, serrated rubber cam shall hold round handles of 7/8" to 1-1/4" diameter [Ø22 to Ø32] wedged against ribbed clamp plate. Mop holders and utility hooks shall be riveted to mop strip.
