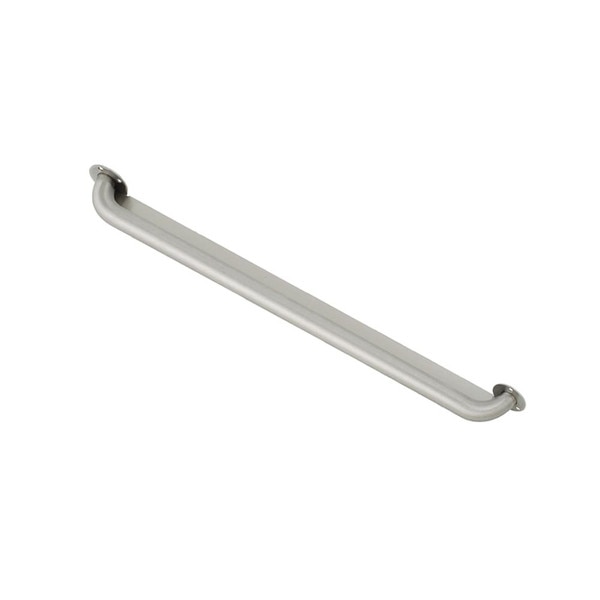

ASI 10-164 Security Grab Bar, Straight, 1-1/2" O. D., 36" Long, Front Mount
 | Safety Warning: Grab bars are no stronger than the anchors and walls to which they are attached and, therefore, must be firmly secured in order to support the loads for which they are intended. |
Security Grab Bar fabricated of type 304, alloy 18-8 stainless stee. All exposed surfaces have satin finish. 1-1/2" O.D. Tubing has 18 gauge (0.048" (1.2mm) thick) wall. Flanges are 1/8" (3mm) thick and shall be completely welded to tube end. Each flange shall has three (3) mounting holes to accommodate 1/4" diameter (Ø6.4) screws (not included).
Closure plate welded on bottom shall be 12 gauge (0.105" (2.711) thick) stainless steel type 304 alloy 18-8 and fits closely to flanges and a straight line between rear face mounting surface of flanges.
Higheset quality type 304 stainless steel alloy 18-8. 18 Guage thickness.
Mandrell bending process ensures uniform bar diameters.
Heliarc welding forms a single structural unit.
ADA Compliant (per CABO/ANSI A117.1-2003 and CFR 28 Part 36, 1 July 1994, section 4.26.3 and FAB-ADA-ABA Regulations of 23 July 2004, Section 609
1 Year manufacturer's warranty against defects in materials and workmanship.

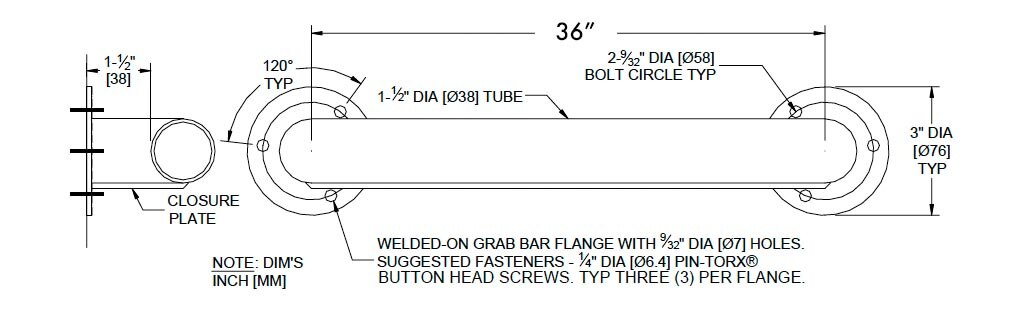

Measurement Diagram:
| Type: | Straight Grab Bar |
| Primary Material: | Stainless Steel |
| Mount Type: | Exposed |
| Outside Diameter: | 1-1/2" |
| Rated Width: | Not Applicable |
| Rated Length: | 36" |
| Grip Type: | Smooth |
| Finish / Color: | Satin |
| Load Capacity: | Up to 250 lbs. |
| Bariatric: | No |
| Antimicrobial: | No |
| Overall Dimensions: | 39" Wide x 3" Tall x 3" Deep |
| Shipping Dimensions: | 40" Length x 4" Width x 4" Height |
| Shipping Weight: | 5.8 lbs. |
| UPC / GTIN: | Not Published |
| Manufacturer Model No.: | 10-164 |
| Country of Manufacture: | China |
| Warranty: | 1 Yr. Manufacturer's Limited |
Architectural Specifications:
Security Grab Bar shall be fabricated of alloy 18-8 stainless steel, type 304. All exposed surfaces shall have satin finish. Tubing shall be 1-1/2" diameter (Ø38.1) with 18 gauge (0.048" (1.2) thick) wall. Flanges shall be 1/8" (3) thick and shall be completely welded to tube end. Each flange shall have three (3) mounting holes to accommodate 1/4" diameter (Ø6.4) screws (supplied by others). Closure plate welded on bottom shall be 12 gauge (0.105" (2.7) thick) stainless steel type 304 alloy 18-8 and shall fit closely to flanges and a straight line between rear face mounting surface of flanges.
