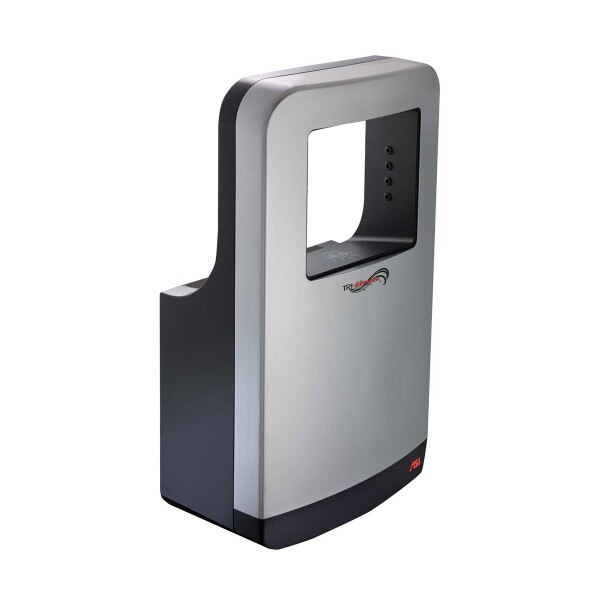

ASI 10-20200-2 TRI-Umph High Speed, Hands-In (Airblade Type) Hand Dryer, Silver/Black, 208-240V
The TriUmph is a state-of-the-art, ergonomic, high-speed hand dryer. With air blowing down and back from vents on three sides, users dry their hands very quickly and in a comfortable, natural position without water splash-back.
ULTRA-HYGENIC - Over 99% of airborn bacteria is eliminated with the removable "Super Filter System." The 3-stage filtration system includes a HEPA filter, a carbon filter, and an antimicrobial filter. In addition, an anti-microbial silver sodium solution is added to cover for increased protection.
ERGONOMIC - No need to bend over to place hands into the dryer.
SPLATTER RESISTANT - Using directed jets of air, water is blown away from the user towards the back of the unit and down onto a porous ceramic plate and drip tray.
12-15 second dry time.
Adjustable airflow and heat.
5 Year limited manufacturer's warranty
Certifications:

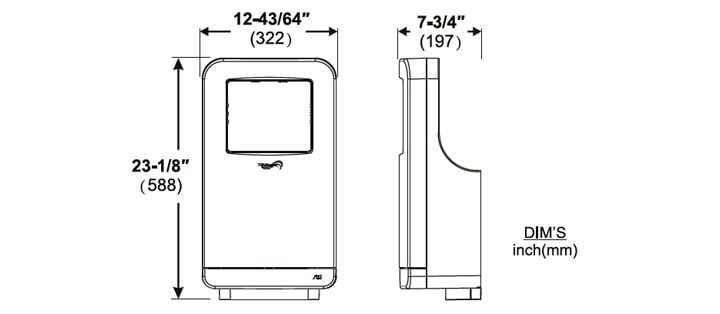

Measurement Diagram:
Alternatives:
See the "hands-in" hand dryer that started it all… the Dyson Airblade dB high speed dryer.
| Activation: | Automatic (infra-red) hands-free (self calibrating) |
| Mount: | Wall Mount / Surface Mount |
| Cover: | ABS Plastic with silver sodium ions |
| Cycle Time: | Not applicable Dryer stops when hands are removed. |
| Nozzle: | Distributed array of micro-ports |
| Power: | 750-1200 Watts, 208-240V (3.2 to 5.8A), 50/60Hz |
| Motor: | Brush type, dual ball bearings |
| Fan: | Single Inlet Centrifugal with Patented Directional Nozzle Flow Control |
| Airspeed: | 55-88 CFM, 145-244 MPH |
| Heating Element: | 900 Watt Nichrome wire with auto reset circuit breaker (On/Off Switchable) |
| Filter: | Triple Layer HEPA Carbon Anti-Bacterial |
| IP Rating: | Not published |
| Product Dimensions: | 12-3/4" Wide x 22" Tall x 7-1/4" Deep |
| Shipping Dimensions: | 27" Length x 16" Width x 13" Height |
| Shipping Weight: | 28 lbs. |
| UPC / GTIN: | Not Published |
| Manufacturer Model No.: | 10-20200-2 |
| Country of Manufacture: | Taiwan |
| Warranty: | 5 Year Manufacturer Limited Warranty |
Architectural Specifications:
Roval™ Collection Surface Mounted Hand Dryer operates automatically from IR sensors that activate dryer when hands are placed in sensor zone. Ready-status LED lights in hand drying chamber turn soothing blue when activated. Cabinet main panel shall be seamless and shall have bowed front face, gently radiused edges and internal reinforcing ribs to provide added strength and complimentary appearance for modern washroom aesthetics and shall be molded in one piece of .06" [1.6] thick ABS. All exposed main panel surfaces shall have a satin finish with appearance of stainless steel or white. Hand chamber, filter drawer and cabinet back shall be black or white in same grade. All housing parts shall be permanently treated with antimicrobial Ag+ Ions. Cabinet back steel plates mount flush against wall and shall have concealed pin-hex security screws to retain unit. Motor and heating element shall have internal resetting automatic thermal protection. Fixed directional air nozzles shall be heavy duty, rust proof and tamper resistant. Air intake slots shall not allow access to internal parts. Ceramic water evaporator plate shall be provided integral with cabinet styling. Drip prevention tray shall be provided with drain port for optional waste line (not supplied) concealed mounted under filter drawer. Concealed HEPA antibacterial triple filter (HEPA {H12}, Activated Charcoal and Anti-Microbial layers) will remove particles as small as 0.3 micrometers [0.3 µm (Ø 0.0001")] and shall prevent recycling of contaminated air. Circuitry shall have self-adjusting time-out and failsafe off protection controlled by a microprocessor that shall detect and reject false signals and shall automatically self calibrate to provide uniform sensitivity over its entire life span. Entire unit shall be internally electrically grounded. Dryer unit shall have CE, C-UL® -US approvals and be listed under the re-examination services of Underwriters Laboratories, Inc. Complete Owner’s Manual & Installation Guide (OM & IG) shall be provided with each unit. Unit shall be warranted against defects in materials or workmanship for five (5) years.
