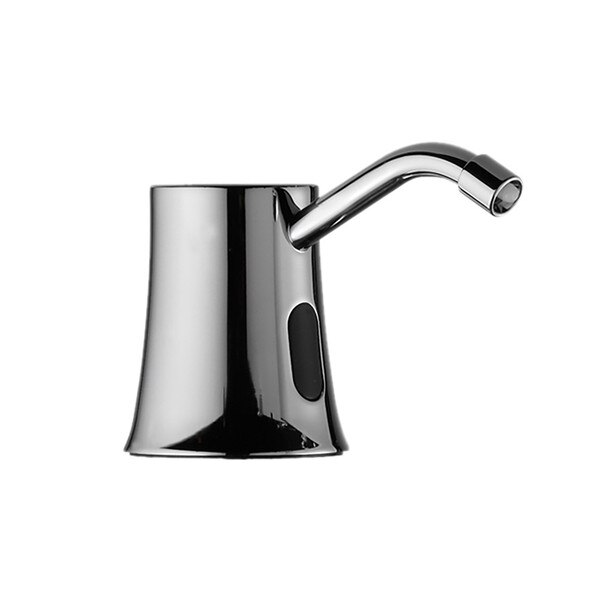

ASI 10-20333 Automatic, Deck Mount Liquid Soap Dispenser, Chrome Plated Brass
Unit has chrome plated brass on exposed surfaces. Powered by 4 D-size batteries (not included). LEDs indicate function, battery condition and soap supply level on face front. Translucent tank.
>Capacity: 54 oz. (1.6 L) of liquid soap.
>Soap Requirements: Proper usage of this dispenser requires, that only soap within the following range for viscosity and pH may be used.
>Viscosity Range (mPa·s or cP): 100 – 3500
>pH Range: 5.0 ~ 8.5
| Mount: | Counter Top |
| Operation: | Automatic (Hands-Free) Sensor Activated |
| Cover / Spout Material: | Chrome-Plated Brass |
| Power: | Four (4) D size (1.5V) batteries (not included |
| Soap Type: | Liquid soap within the viscosity range of 100 – 3500 cP (MPa•s) |
| Capacity: | 54 oz. |
| Dispense Amount: | Approx. 0.04 oz (1.25 ml) |

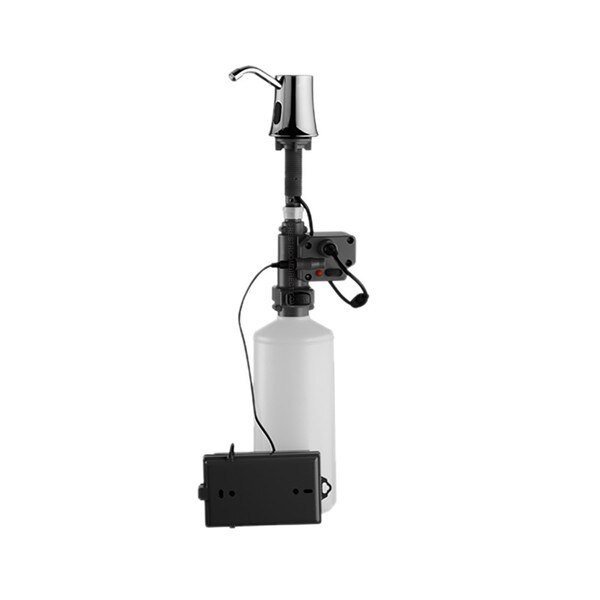

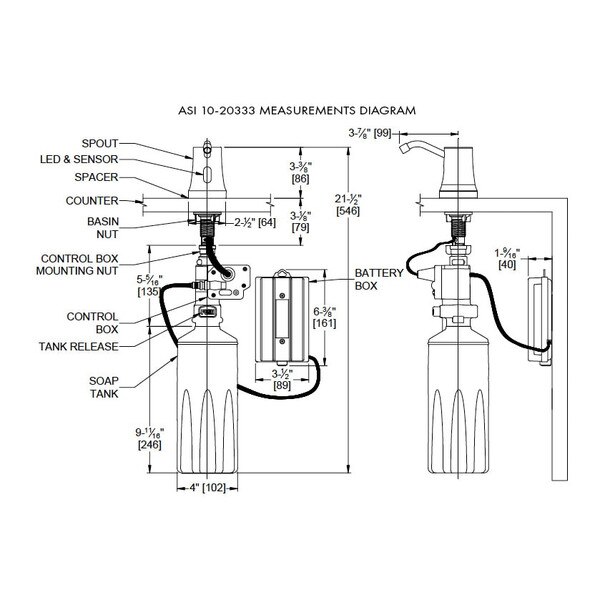

| Overall Dimensions: | "SPOUT: 2-1/2"" Wide x 3-3/8"" Tall x 5-1/8"" Deep Under counter tank and pump assembly requires approx. 12"" Wide x 18"" Tall x 10"" Deep spacing. See spec sheet for details." |
| Net Weight: | 3.2 lbs. |
| Shipping Dimensions: | 17" Length x 13-1/2" Width x 5" Height |
| Shipping Weight: | 3.6 lbs. |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published Buy American Act compliant |
| Comments: | LED will display red flash for sensing, solid red for low battery condition and solid blue for low soap level. Push button releases tank for easy refilling. |
Architectural Specifications:
Automatic Deck Mounted Soap Dispenser shall hold 54 oz (1600 ml) of liquid soap within the viscosity range of 100 – 3500 cP (MPa•s) and dispense in cycles of single shot volume of approximately 0.04 oz (1.25 ml). Operation is initiated by hands-free sensor controlled by microprocessor digital circuitry powered by four (4) D size 1.5 V batteries (supplied by others) in a screwlocked compartment located under counter. Unit shall have chrome plated brass tubing spout and nozzle housing with a polished finish over all exposed surfaces and a chrome plated sensor housing. Unit shall have LED’s to indicate function, battery condition and soap supply level on front face. Below counter tank shall be translucent to show quantity of soap remaining at any time. Tank shall be easily disengaged and engaged into control housing by push button to facilitate refilling. Concealed switches in control housing shall allow two (2) modes of soap level indication. Unit shall mount on vanity deck through 1" diameter (Ø25) hole. Mounting template and Owner’s Manual shall be provided with unit in each carton.
