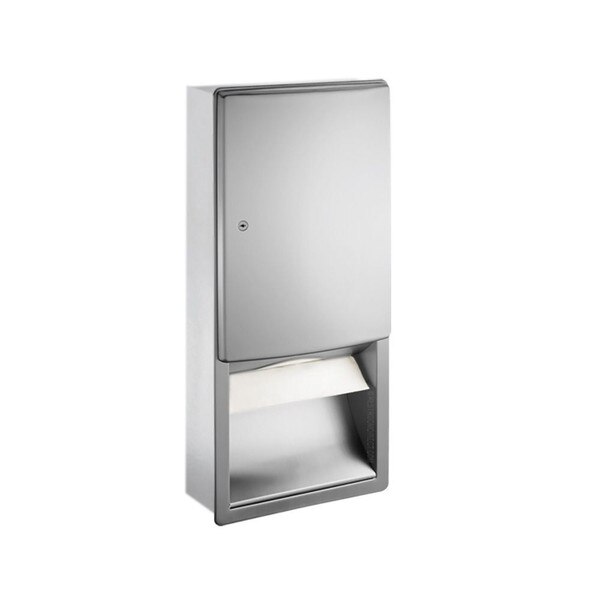

ASI 10-20452 Stainless Steel Multi/C-Fold Paper Towel Dispenser, Recessed Mount (600C/800M)
Towels are self-feeding upon user manual demand until supply is depleted. Unit may be reloaded with a partial load in-place and will continue to feed properly. Towels are replenished manually on a cycle determined by maintenance needs. Locked door prevents unauthorized access or removal.
| Type: | C-Fold / Multi-Fold Paper Towel Dispenser |
| Primary Material: | Stainless Steel |
| Color / Finish: | Satin (Brushed) |
| Installation Type: | Wall / Recessed |
| Capacity: | 800 C-Fold | 600 Multifold |
| Power: | No power required |
| ADA Compliant: | Yes |
| Overall Dimensions: | 12-3/4" Wide x 28" Tall x 5-7/16" Deep |
| Rough-In: | 11-1/4" Wide x 26-7/16" Tall x 3-15/16" Deep |
| Shipping Dimensions: | 32" Length x 15" Width x 6-1/2" Height |
| Shipping Weight: | 13 lbs. |
| Manufacturer Model No.: | 10-20452 |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published |
| Warranty: | Warranted to be free from defects in material and workmanship for a period of one (1) year from date of invoice. |
| Additional Comments: | Tumbler lock uses ASI key: E-114. |
Architectural Specifications:
Roval™ Collection Recess Mounted Paper Towel Dispenser shall hold and dispense 800 standard multi-fold or 600 standard Cfold paper towels. Cabinet full door shall be drawn seamless and shall have bowed front face and gently radiused edges to provide added strength and complimentary appearance for modern washroom aesthetics. Door shall be 18 gauge type 304 stainless steel alloy 18-8. Towel dispenser, frame and cabinet shall be 22 gauge type 304 stainless steel alloy 18-8. All exposed surfaces shall have a satin finish and shall be protected during shipment with PVC film easily removable after installation. Towel dispensing slot shall have a fully hemmed-in rolled edge for snag-free dispensing and user safety. Dispenser door shall be attached to cabinet at side with a full-length 9/64" diameter (Ø3.5) heavy-duty stainless steel multi-staked piano hinge and shall be held closed with a flush rimless tumbler lock keyed alike to other ASI washroom equipment. Face trim shall be 1-1/16′′ (27) wide formed from one piece with no miters, welding or open seams and have 1/8′′ (3) radiused return to wall. Structural assembly of body and door components shall be of welded construction.
