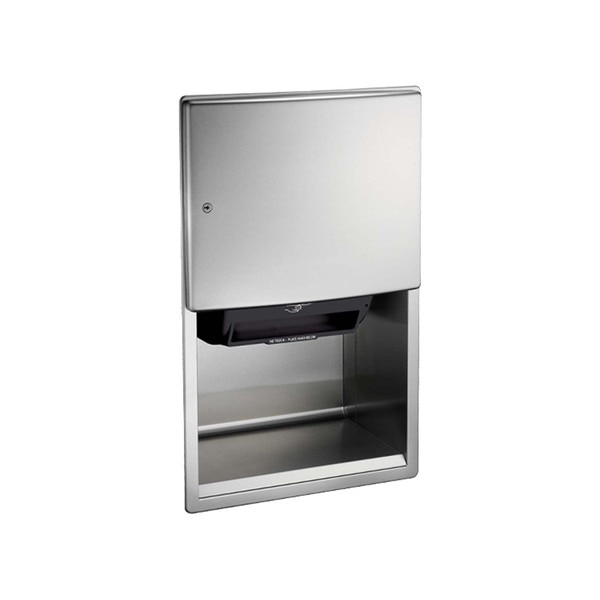

ASI 10-204523A Recessed Stainless Steel, Automatic Paper Towel Dispenser, Roll Type
Fabricated of 22 gauge stainless steel with satin finish.
Towels are dispensed one length at a time automatically when hands are placed in sensor zone until supply is depleted.
Owner predetermines length of towel dispensed by making selections on three (3) three-position switches for length, delay, and economy.
Unit may be reloaded with a full roll to automatically start when finished with an existing partial roll and will continue to feed properly when reloaded with a full roll and partial roll is transferred to stub roll position.
Refill dispenser by unlocking door and replacing towel roll for an empty or partially empty unit. Dispenser supply is replenished and batteries are replaced manually. LED indicates sensing and battery condition. Locking door prevents unauthorized access and roll removal.
Powered by 4 D-size batteries (not included).
| Type: | Automatic, Roll Type Commercial Paper Towel Dispenser |
| Primary Material: | Stainless Steel |
| Color / Finish: | Satin (Brushed) |
| Installation Type: | Wall / Recessed |
| Capacity: | "One 8"" Dia., 8"" Wide Roll One 4"" Dia., 8"" Wide Stub Roll" |
| Power: | 4 "D-Cell" Batteries (not included) |
| ADA Compliant: | Yes |
| Overall Dimensions: | 17-3/8" Wide x 27-3/4" Tall x 11-11/16" Deep (Projects 1-11-16" out from wall) |
| Rough-In: | 15-3/4" Wide x 26" Tall x 10" Deep |
| Shipping Dimensions: | 29" Length x 19" Width x 13" Height |
| Shipping Weight: | 26 lbs. |
| Manufacturer Model No.: | 10-204523A |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published |
| Warranty: | Warranted to be free from defects in material and workmanship for a period of one (1) year from date of invoice. |
| Additional Comments: | Tumbler lock uses ASI key: E-114. |
Architectural Specifications:
Roval™ Collection Recess Mounted Automatic Roll Paper Towel Dispenser shall hold and dispense one 8" [203] wide x 8" Dia. [Ø203] standard towel roll up to 800 ft. (244m) long and one 8" wide [203] stub roll up to 4" Dia. [Ø102]. Cabinet full door shall be drawn seamless and shall have bowed front face and gently radiused edges to provide added strength and complimentary appearance for modern washroom aesthetics. Automatic Touchless Roll Towel Dispenser shall be powered by four (4) D-size batteries (not supplied) and shall operate automatically to activate towel dispensing when hands are placed in sensor zone from 1/2" [13] below sensor to 4-1/2" [114] below sensor. At each activation unit shall feed out a length of towel selected by owner by setting length, delay and paper saver switches. Unit shall have an internal towel cut-off bar. Cabinet and frame shall be 22 gage type 304 stainless steel alloy 18-8. Towel dispenser door shall be 18 gage same grade and shall have a full return and formed sill at bottom edge for user safety. All exposed surfaces shall have satin finish protected by PVC film easily removed after installation. Door shall be attached to cabinet at side with a full-length 1/8" Dia. [Ø3,1] stainless steel multi-staked piano hinge and shall be held closed with a flush rimless tumbler lock keyed alike to other ASI washroom equipment. Internally concealed doorstop shall prevent over-swing when opened rapidly. Face trim shall be 1" [25] wide formed from one piece with no miters, welding or open seams and have 1/8" [3,1] radiused return to wall. Structural assembly of all components shall be of welded construction. Cabinet shall have no exposed fastening devices or spot-welded seams.
