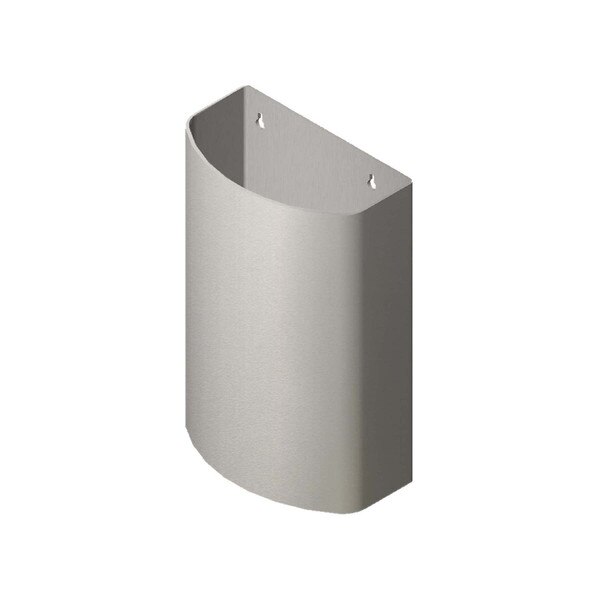

ASI 10-20826 Surface Mount Stainless Steel Waste Receptacle, 12.8 Gallon
Receptacle front and sides fabricated of 20 gauge type 304 stainless steel with satin finish. Capacity 12.8 gal. (48.4 L). Receptacle includes four (4) interior hooks for hanging a reusable heavy gauge vinyl liner bag with grommets (by others). Receptacle is screw mounted to wall through keyhole slots with concealed heavy gauge type 304 stainless steel reinforcement straps.
User deposits waste material. Unload unit by removing either the disposable bag or reusable liner bag (both by others) to empty into appropriate bulk collection container.
| Mount: | Wall / Surface, Exposed |
| Primary Material: | Stainless Steel |
| Capacity: | 12.8 Gal. |
| Lid or Cover: | None |
| Locks: | No |
| Overall Dimensions: | 15-1/8" Wide x 23" Tall x 8-1/2" Deep |
| Net Weight: | 15.5 lbs. |
| Shipping Dimensions: | 24" Length x 16" Width x 10" Height |
| Shipping Weight: | 16 lbs. |
| Warranty: | Warranted to be free from initial defects in material and workmanship for a period of one (1) year from date of invoice. |
| UPC / GTIN: | Not published |
| Country of Manufacture: | Not published |
| Comments: | Unload unit by removing either the disposable bag or reusable liner bag (both not included) to empty into appropriate bulk collection container. |
Architectural Specifications:
Roval™ Collection Surface Mounted Waste Receptacle shall hold 12.8 gallons (48.4 liters) of waste material. Receptacle body shall be formed seamless and shall have bowed front face and gently radiused front vertical edges to provide added strength and complimentary appearance for modern washroom aesthetics. Unit body shall be 20 gauge type 304 stainless steel alloy 18-8 with satin finish and be protected during shipment with PVC film that is easily removable after installation. Receptacle full top edge is hemmed with return to inside for user and service safety. Receptacle shall have four (4) interior hooks for hanging a reusable heavy gauge vinyl liner bag with grommets (by others) and shall have no exposed fastening devices or spot-welded seams. Receptacle shall be screw mounted to wall through keyhole slots with concealed heavy gauge type 304 stainless steel reinforcement straps.
