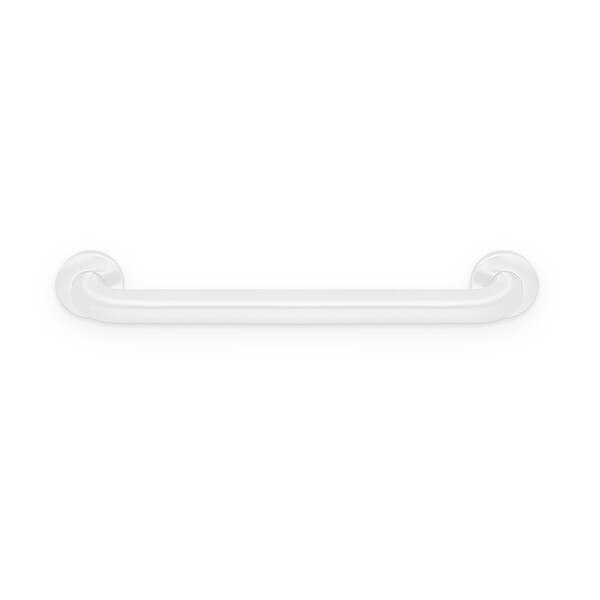

ASI 10-3701-18W Grab Bar, White, Powder Coated, 1-1/4" OD, 18" Long, Snap Flange
 | Safety Warning: Grab bars are no stronger than the anchors and walls to which they are attached and, therefore, must be firmly secured in order to support the loads for which they are intended. |
White grab bar with snap-on flange covers for concealed mounting. Manufactured from type 304 stainless steel alloy 18-8.
Tubing is be 1-1/4" diameter (Ø38) x 18 gauge [0.048"] (1.2). Snap-on flange covers are 21 gauge [0.035"] (0.9). Mounting flanges are 5/64" thick and Heliarc welded to tubing with a continuous concealed bead. Mounting holes are 1/4" diameter on 2-3/8" diameter circle. All exposed surfaces have a white epoxy powder coated finish and are protected during shipment with a plastic bag.
Higheset quality type 304 stainless steel alloy 18-8. 18 Guage thickness.
Mandrell bending process ensures uniform bar diameters.
Heliarc welding forms a single structural unit.
ADA Compliant (per CABO/ANSI A117.1-2003 and CFR 28 Part 36, 1 July 1994, section 4.26.3 and FAB-ADA-ABA Regulations of 23 July 2004, Section 609
1 Year manufacturer's warranty against defects in materials and workmanship.
Measurement Diagram:
| Type: | Straight Grab Bar |
| Primary Material: | Stainless Steel |
| Mount Type: | Concealed (Snap Flange) |
| Outside Diameter: | 1-1/4" |
| Rated Width: | Not Applicable |
| Rated Length: | 18" |
| Grip Type: | Smooth |
| Finish / Color: | White |
| Load Capacity: | Up to 250 lbs. |
| Bariatric: | No |
| Antimicrobial: | No |
| Overall Dimensions: | 15-1/8" Wide x 3-1/8" Tall x 2-3/4" Deep |
| Shipping Dimensions: | 22" Length x 4" Width x 4" Height |
| Shipping Weight: | 2.2 lbs. |
| UPC / GTIN: | Not Published |
| Manufacturer Model No.: | 10-3701-18W |
| Country of Manufacture: | China |
| Warranty: | 1 Yr. Manufacturer's Limited |
Architectural Specifications:
1-1/4" Diameter [Ø32] Grab Bar with Snap-On Flange Covers for concealed mounting shall be type 304 stainless steel alloy 18-8. Tubing shall be 1-1/4" diameter [Ø32] x 18 gauge (0.048") [1.2]. Snap-on cover shall be 22 gauge (0.03") [0.8]. Flange shall be 1/8" [3] thick and shall be heliarc welded to tubing with a continuous concealed bead. End flanges shall have two (2) 5/16" diameter [Ø7.5] mounting holes. Center posts (if any) shall have (2) keyhole slots to ease installation access. All exposed surfaces shall have a satin finish and shall be protected during shipment with a plastic bag. For optional non-slip surface, add suffix –P (peened).
