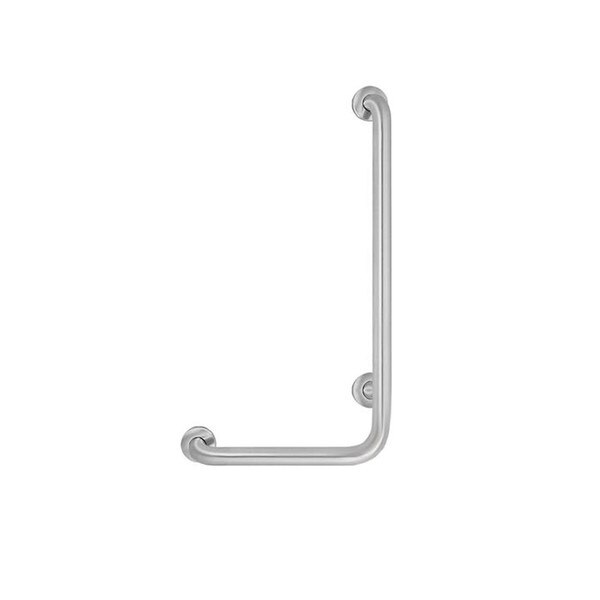

ASI 10-3704-R Elbow Grab Bar, Right Hand, 1-1/4" OD, 16" x 32", Snap Flange
This snap flange grab bar is similar to the exposed mount grab bars, except that it has decorative flanges that snap over the mounting plates to conceal them. Like the exposed mount, it requires that the grab bar be held in place while it is attached to the wall using the appropriate fasteners (not included). Once this has been done, the flanges slide to the ends of the grab bar and snap securely in place over the mounting plates.
Higheset quality type 304 stainless steel alloy 18-8. 18 Guage thickness.
Mandrell bending process ensures uniform bar diameters.
Heliarc welding forms a single structural unit.
ADA Compliant (per CABO/ANSI A117.1-2003 and CFR 28 Part 36, 1 July 1994, section 4.26.3 and FAB-ADA-ABA Regulations of 23 July 2004, Section 609
1 Year manufacturer's warranty against defects in materials and workmanship.
| Primary Material: | 18 Gauge, Type 304 Stainless Steel |
| Mount Type: | Concealed (Snap Flange) |
| Rated Length: | 16" x 32" |
| Outside Diameter: | 1-1/4" |
| Overall Dimensions: | 19" x 35" x 2-3/4" |
| Net Weight: | 4.8 lbs. |
| Shipping Dimensions: | 20" x 36" x 4" |
| Shipping Weight: | 5.8 lbs. |
| UPC / GTIN: | Not published |
| Manufacturer Model No.: | 10-3704-R |
| Country of Manufacture: | China |
| Warranty: | 1 Yr. Manufacturer's Limited |
