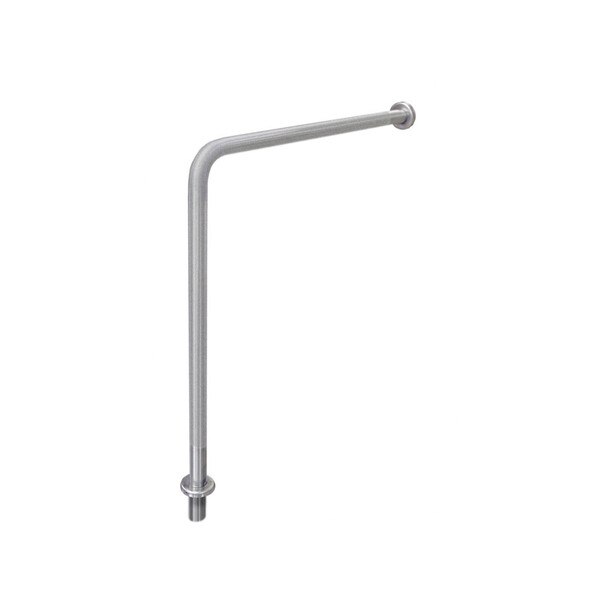

ASI 10-3815-P Wall to Floor Grab Bar, 1-1/2" OD, 30" Wide x 33" Tall, Snap Flange, Peened
 | This product will ship on a pallet via Freight service. Please let us know if you will need a lift gate or have restricted access (add'l fees may apply). |
- Higheset quality type 304 stainless steel alloy 18-8. 18 Guage thickness.
- Mandrell bending process ensures uniform bar diameters.
- Heliarc welding forms a single structural unit.
- ADA Compliant (per CABO/ANSI A117.1-2003 and CFR 28 Part 36, 1 July 1994, section 4.26.3 and FAB-ADA-ABA Regulations of 23 July 2004, Section 609
- 1 Year manufacturer's warranty against defects in materials and workmanship.

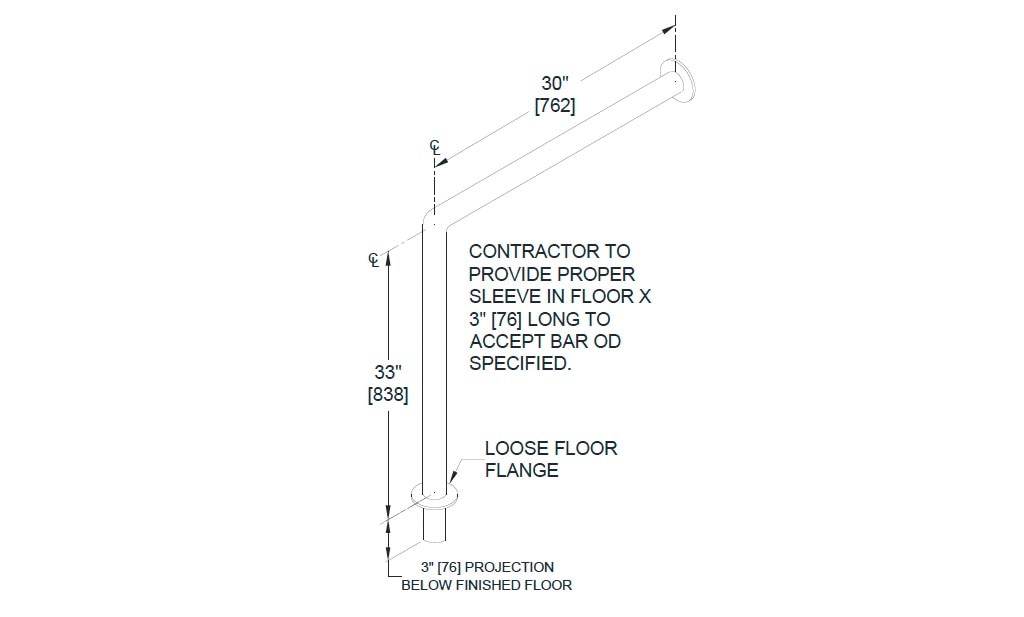

Measurement Diagram:
| Type: | Wall-to-Floor Grab Bar |
| Primary Material: | Stainless Steel |
| Mount Type: | Concealed (Snap Flange) |
| Outside Diameter: | 1-1/2" |
| Rated Width: | 30" |
| Rated Length: | 33" |
| Grip Type: | Peened |
| Finish / Color: | Satin |
| Load Capacity: | Up to 250 lbs. |
| Bariatric: | No |
| Antimicrobial: | No |
| Overall Dimensions: | 3-1/8" Wide x 37-5/8" Tall x 31-5/8" Deep |
| Shipping Dimensions: | 36" Length x 33" Width x 4" Height |
| Shipping Weight: | 13.5 lbs. |
| UPC / GTIN: | Not Published |
| Manufacturer Model No.: | 10-3815-P |
| Country of Manufacture: | China |
| Warranty: | 1 Yr. Manufacturer's Limited |
Architectural Specifications:
1-1/2" Dia [Ø38] Grab Bar with Snap-On Flange Covers for concealed mounting shall be type 304 stainless steel alloy 18-8. Tubing shall be 1-1/2" Dia [Ø38] x 18 gage. Snap-on cover shall be 22 gage. Flange shall be 11 gage 1/8" [3] thick and shall be Heliarc welded to tubing with a continuous concealed bead. End flanges shall have two (2) 5/16" Dia [Ø7,5] mounting holes. Center posts (if any) shall have (2) keyhole slots to ease installation access. All exposed surfaces shall be satin finish (or Powder Coated (PC) Matte Black finish if suffix -41 is added to Model №) and shall be protected during shipment with a plastic bag. For optional non-slip surface (satin only) add suffix –P (peened).
